Engineers Available To Service Machinery Overseas Oil Hot Water
Boiler
| Product Name |

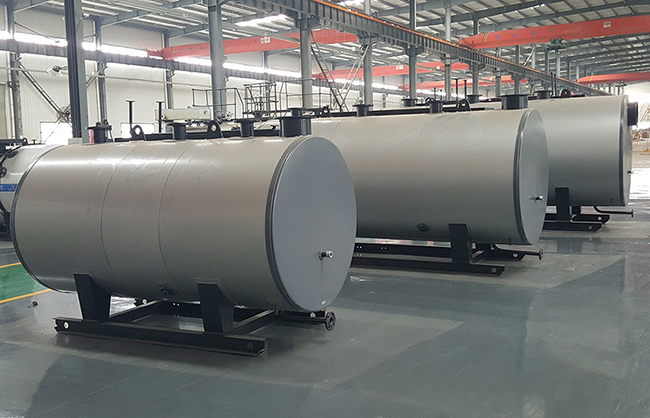

Oil Hot Water Boiler
|
| Fuel Type | Diesel,Heavy Oil,Crude Oil |
| Thermal Efficiency |
95%
|
| Operation Control |
PLC Programmable Control
|
| After-sales Service Provided |
Engineers Available To Service Machinery Overseas
|
Features
1. Applied international latest technology for big volume
combustion room design, and use Italy combustion machine.
2. Corrugated furnace design make large heat transfer area and
protect furnace.
3. Using fire-tube with screw thread, 1-2 faster heat transfer
efficiency and remove hidden danger of welding cracks.
4. Wet-back boiler reduce faults rate and maintenance cost.
5. With protection devices for overheating, overpressure, lacking
water, leak detection, flameout etc.
Quality Assurance
1. Strength calculation test report of applied materials
2. Whole set of pure water processor line featured with RO
anti-saturation and advanced testing devices
3. Hydraulic test report: ensure the standard working pressure and
safety
4. Third-party inspection report-Jiaozuo Special Equipment
Inspection & Technical Research
Hot Water Boiler Model
| Item / Unit / Model | CWNS 0.35- 85/65-Y(Q) | CWNS 0.48- 85/65-Y(Q) | CWNS 0.58-85/65-Y(Q) | CWNS 0.7- 85/65-Y(Q) | CWNS 1.05-85/65- Y(Q) | CWNS 1.4-85/65-Y(Q) | CWNS 2.1-85/65-Y(Q) | CWNS 2.8-85/65-Y(Q) | CWNS 4.2-85/65-Y(Q) | CWNS 5.6-85/65-Y(Q) | CWNS 7.0-85/65-Y(Q) |
Rated Heat Capacity | MW | 0.35 | 0.48 | 0.58 | 0.7 | 1.05 | 1.4 | 2.1 | 2.8 | 4.2 | 5.6 | 7.0 |
| Working Pressure | MPa | Non Pressure |
Inlet/Outlet Water Temperature | ℃ | 85/65 | 85/65 | 85/65 | 85/65 | 85/65 | 85/65 | 85/65 | 85/65 | 85/65 | 85/65 | 85/65 |
Heating Surface | ㎡ | 19.5 | 21 | 31 | 34.2 | 50.2 | 65.76 | 93.61 | 113.44 | 187.1 | 260.36 | 273.7 |
Thermal Efficiency | % | 91-98% |
| Fuel Consumption | Natural Gas | Nm³/h | 36/38 | 49/52 | 59/63 | 71/76.7 | 104/112 | 142/153.4 | 208/226.1 | 280/304.8 | 414/440.3 | 547/602.5 | 680/730 |
| Diesel | Kg/h | 32.5 | 44.5 | 53.8 | 64.9 | 97.4 | 139.9 | 194.8 | 259.8 | 376.5 | 497.6 | 623.7 |
Electric Consumption | KW/h | 1.1 | 2.3 | 2.3 | 2.3 | 4.0 | 4.7 | 7.5 | 8.2 | 11 | 15 | 22 |
| Transport Weight | Kg | 1550 | 1650 | 1950 | 2100 | 2900 | 3500 | 4950 | 5190 | 10600 | 16000 | 19104 |
| Water Volume | L | 700 | 850 | 1100 | 1500 | 1848 | 2700 | 3600 | 5000 | 9000 | 13300 | 13300 |
| Dimension | Length | mm | 2260 | 2280 | 2395 | 2695 | 3205 | 3685 | 3915 | 4415 | 5300 | 6420 | 6822 |
| Width | mm | 1120 | 1120 | 1475 | 1475 | 1475 | 1665 | 1750 | 1900 | 2380 | 2528 | 2550 |
| Height | mm | 1550 | 1590 | 1750 | 1750 | 1750 | 2015 | 2160 | 2300 | 2742 | 3015 | 3064 |
Water Outlet Pipe | mm | 80 | 80 | 100 | 100 | 125 | 150 | 150 | 200 | 200 | 250 | 250 |
| Water Inlet Pipe | mm | 80 | 80 | 100 | 100 | 125 | 150 | 150 | 200 | 200 | 250 | 250 |
| Atmosphere Open Pipe | mm | 80 | 80 | 100 | 100 | 125 | 150 | 150 | 200 | 200 | 250 | 250 |
| Drain Pipe | mm | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| Chimney | mm | 250 | 250 | 250 | 250 | 250 | 300 | 350 | 400 | 600 | 700 | 800 |
| Basement Dimensions | Length | mm | 1950 | 1980 | 2050 | 2120 | 2620 | 3100 | 3100 | 3560 | 4100 | 5200 | 5380 |
| Width | mm | 800 | 810 | 1000 | 1000 | 1000 | 1100 | 1200 | 1300 | 1750 | 2000 | 2100 |
Our Services
Pre-sale service:
Accept inquiry of customers ,confirmation of investment advice of
choice of product ,assist the customers to design the workshop.
In-sale service:
Help customers finish the basal equipment ,technical training of
customers’s workers ,practice of operation ,help to install ,train
the operators in the workshop.
After-sale service:
24 hours service of technology inquiry, instant components supply,
regularly technical service guidance of maintain,long distance
malfunction control.
Unique service:
System up-grade,special design according to the customers’
requirement, mould renew, supply new technology and products
information.
