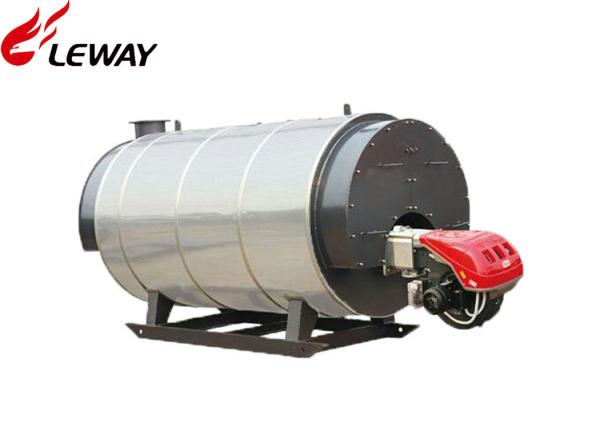

1. Natural Gas Diesel Oil Fired Hot Water Heater Boiler to light
oil and natural gas for the design of fuel,
can also be burned with city gas or liquefied petroleum gas, fuel
adaptability, energy efficient, low
operating costs.
2. Natural Gas Diesel Oil Fired Hot Water Heater Boiler body with
full butt weld wet back structure, low
layout full-wave furnace gallbladder, boiler structure flexibility
and thermal expansion of good, safe and
reliable.
3. 80mm thick aluminum silicate fiber insulation layer, light
weight, good insulation effect, heat loss
is small.
4. Natural Gas Diesel Oil Fired Hot Water Heater Boiler body
resistance is small, smooth operation, save
power consumption, low noise.
5. Express the overall structure, small size, compact structure,
easy installation.
6. Natural Gas Diesel Oil Fired Hot Water Heater Boiler emissions
without smoke,SO2 and NOx emissions
concentration is very low, significant environmental benefits.
Hot Water Boiler Model
| Item / Unit / Model | CWNS 0.35- 85/65-Y(Q) | CWNS 0.48- 85/65-Y(Q) | CWNS 0.58-85/65-Y(Q) | CWNS 0.7- 85/65-Y(Q) | CWNS 1.05-85/65- Y(Q) | CWNS 1.4-85/65-Y(Q) | CWNS 2.1-85/65-Y(Q) | CWNS 2.8-85/65-Y(Q) | CWNS 4.2-85/65-Y(Q) | CWNS 5.6-85/65-Y(Q) | CWNS 7.0-85/65-Y(Q) |
Rated Heat Capacity | MW | 0.35 | 0.48 | 0.58 | 0.7 | 1.05 | 1.4 | 2.1 | 2.8 | 4.2 | 5.6 | 7.0 |
| Working Pressure | MPa | Non Pressure |
Inlet/Outlet Water Temperature | ℃ | 85/65 | 85/65 | 85/65 | 85/65 | 85/65 | 85/65 | 85/65 | 85/65 | 85/65 | 85/65 | 85/65 |
Heating Surface | ㎡ | 19.5 | 21 | 31 | 34.2 | 50.2 | 65.76 | 93.61 | 113.44 | 187.1 | 260.36 | 273.7 |
Thermal Efficiency | % | 91-98% |
| Fuel Consumption | Natural Gas | Nm³/h | 36/38 | 49/52 | 59/63 | 71/76.7 | 104/112 | 142/153.4 | 208/226.1 | 280/304.8 | 414/440.3 | 547/602.5 | 680/730 |
| Diesel | Kg/h | 32.5 | 44.5 | 53.8 | 64.9 | 97.4 | 139.9 | 194.8 | 259.8 | 376.5 | 497.6 | 623.7 |
Electric Consumption | KW/h | 1.1 | 2.3 | 2.3 | 2.3 | 4.0 | 4.7 | 7.5 | 8.2 | 11 | 15 | 22 |
| Transport Weight | Kg | 1550 | 1650 | 1950 | 2100 | 2900 | 3500 | 4950 | 5190 | 10600 | 16000 | 19104 |
| Water Volume | L | 700 | 850 | 1100 | 1500 | 1848 | 2700 | 3600 | 5000 | 9000 | 13300 | 13300 |
| Dimension | Length | mm | 2260 | 2280 | 2395 | 2695 | 3205 | 3685 | 3915 | 4415 | 5300 | 6420 | 6822 |
| Width | mm | 1120 | 1120 | 1475 | 1475 | 1475 | 1665 | 1750 | 1900 | 2380 | 2528 | 2550 |
| Height | mm | 1550 | 1590 | 1750 | 1750 | 1750 | 2015 | 2160 | 2300 | 2742 | 3015 | 3064 |
Water Outlet Pipe | mm | 80 | 80 | 100 | 100 | 125 | 150 | 150 | 200 | 200 | 250 | 250 |
| Water Inlet Pipe | mm | 80 | 80 | 100 | 100 | 125 | 150 | 150 | 200 | 200 | 250 | 250 |
| Atmosphere Open Pipe | mm | 80 | 80 | 100 | 100 | 125 | 150 | 150 | 200 | 200 | 250 | 250 |
| Drain Pipe | mm | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| Chimney | mm | 250 | 250 | 250 | 250 | 250 | 300 | 350 | 400 | 600 | 700 | 800 |
| Basement Dimensions | Length | mm | 1950 | 1980 | 2050 | 2120 | 2620 | 3100 | 3100 | 3560 | 4100 | 5200 | 5380 |
| Width | mm | 800 | 810 | 1000 | 1000 | 1000 | 1100 | 1200 | 1300 | 1750 | 2000 | 2100 |
Quality Assurance
1. Strength calculation test report of applied materials
2. Whole set of pure water processor line featured with RO
anti-saturation and advanced testing devices
3. Hydraulic test report: ensure the standard working pressure and
safety
4. Third-party inspection report-Jiaozuo Special Equipment
Inspection & Technical Research
Packing & Delivery
According to customer's requirements, our company can provide FOB
inland transporation, CFR/ CIF ocean delivery.
For ensure the customer get the quality products smoothly and
safely, our company has professional transporation team for
handling the cargo loading, safe transporation, cargo discharge.
