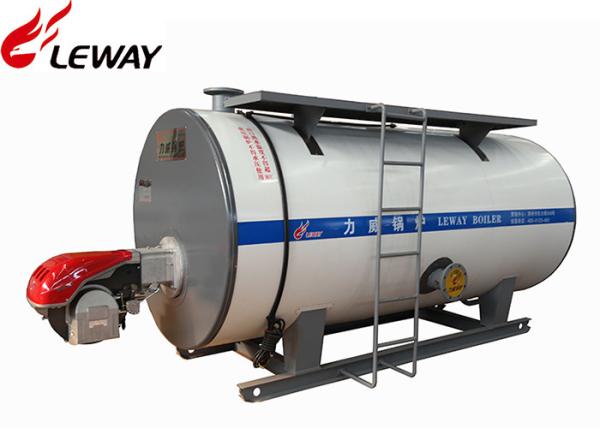

Non Pressure Oil Hot Water Boiler 0.35MW - 7MW Horizontal

Ask Lasest Price
Brand Name :	LEWAY BOILER
Model Number :	CWNS
Certification :	SGS, ISO, OHSAS
Price :	Negotiable
Supply Ability :	300 Ton/Tons per Month hot water boiler
Delivery Time :	Average 15 Days
Payment Terms :	L/C, T/T

Add to Cart

Product Details
Company Profile

Non Pressure Oil Hot Water Boiler 0.35MW - 7MW Horizontal

Non - Pressure 0.35 MW - 7 MW Horizontal Oil Hot Water Boiler For Heating

Product Description

Product Name	Oil Hot Water Boiler
Fuel Type	Diesel,Heavy Oil,Crude Oil
Thermal Efficiency	95%
Operation Control	PLC Programmable Control
After-sales Service Provided	Engineers Available To Service Machinery Overseas

Energy Efficient

Three fire-passes, corrugated fire-Tubes/ corrugated furnace effectively increase boiler’s heating surface. Wet-Back replace traditional Dry-Back, protect the smoke-boxes from high-temperature damage. Finned tube-type condenser to reuse the latent heat in exhaust gas.

Quality Assurance

1.Strength calculation test report of applied materials
2.Whole set of pure water processor line featured with RO anti-saturation and advanced testing devices
3.Hydraulic test report: ensure the standard working pressure and safety
4.Third-party inspection report-Jiaozuo Special Equipment Inspection & Technical Research

Hot Water Boiler Model

Item / Unit / Model			CWNS 0.35- 85/65-Y(Q)	CWNS 0.48- 85/65-Y(Q)	CWNS 0.58-85/65-Y(Q)	CWNS 0.7- 85/65-Y(Q)	CWNS 1.05-85/65- Y(Q)	CWNS 1.4-85/65-Y(Q)	CWNS 2.1-85/65-Y(Q)	CWNS 2.8-85/65-Y(Q)	CWNS 4.2-85/65-Y(Q)	CWNS 5.6-85/65-Y(Q)	CWNS 7.0-85/65-Y(Q)
Rated Heat Capacity		MW	0.35	0.48	0.58	0.7	1.05	1.4	2.1	2.8	4.2	5.6	7.0
Working Pressure		MPa	Non Pressure
Inlet/Outlet Water Temperature		℃	85/65	85/65	85/65	85/65	85/65	85/65	85/65	85/65	85/65	85/65	85/65
Heating Surface		㎡	19.5	21	31	34.2	50.2	65.76	93.61	113.44	187.1	260.36	273.7
Thermal Efficiency		%	91-98%
Fuel Consumption	Natural Gas	Nm³/h	36/38	49/52	59/63	71/76.7	104/112	142/153.4	208/226.1	280/304.8	414/440.3	547/602.5	680/730
Fuel Consumption	Diesel	Kg/h	32.5	44.5	53.8	64.9	97.4	139.9	194.8	259.8	376.5	497.6	623.7
Electric Consumption		KW/h	1.1	2.3	2.3	2.3	4.0	4.7	7.5	8.2	11	15	22
Transport Weight		Kg	1550	1650	1950	2100	2900	3500	4950	5190	10600	16000	19104
Water Volume		L	700	850	1100	1500	1848	2700	3600	5000	9000	13300	13300
Dimension	Length	mm	2260	2280	2395	2695	3205	3685	3915	4415	5300	6420	6822
	Width	mm	1120	1120	1475	1475	1475	1665	1750	1900	2380	2528	2550
	Height	mm	1550	1590	1750	1750	1750	2015	2160	2300	2742	3015	3064
Water Outlet Pipe		mm	80	80	100	100	125	150	150	200	200	250	250
Water Inlet Pipe		mm	80	80	100	100	125	150	150	200	200	250	250
Atmosphere Open Pipe		mm	80	80	100	100	125	150	150	200	200	250	250
Drain Pipe		mm	40	40	40	40	40	40	40	40	40	40	40
Chimney		mm	250	250	250	250	250	300	350	400	600	700	800
Basement Dimensions	Length	mm	1950	1980	2050	2120	2620	3100	3100	3560	4100	5200	5380
Basement Dimensions	Width	mm	800	810	1000	1000	1000	1100	1200	1300	1750	2000	2100

Complate Boiler Room System

High Quality

The manufacture strictly in accordance with CHINA GB/T Standards. Boiler has automatic control, automatic water-level regulate; most important, also realizes autoamtic ignition, water-shortage protection, over-heat protection, flameout protection.
