Fire Tube High Efficiency Diesel Fired Hot Water Boiler For Hotel
Product Description
1.Furnace big, high radiate, three return design, combustion air is
full, high-efficiency heating surface. Using high thermal
resistance of insulation materials, boilers, heat losses to the
minimum
2.More than 90% thermal efficiency. Intelligent, automatically
control, with automatic temperature regulation, over-temperature
standby.
3.Burners are used by importing, pressure spray, burning
completely, low noise. thus Combustion intensity will be reduced
dust emissions reduction of harmful gases.
4.Confined by connecting structure, safe, reliable, long service
life. Super temperature, cut water, overload, ignition failure,
abnormal flameout, gas boiler pressure, all can do self-test
multiple chain protection.
Features
1. The boiler run automatically, simple operation and complete
function, convenient to use.
2. All the raw materials strict selected,the boiler is of good
quality and durable.
3. Safety device is complete,set with safe valve, once
overpressure, it can reduce press automatically with level alarm,
can offer the alarm of high or low water level,safe and reliable.
4. High combustion efficiency, low heat loss. Fire tube structure,
set up the spduoiler, strengthen heat transfer, thermal efficiency
is improved.
5. The structure is compact, light weight, small area covering,
convenient to install and move.
6. Less emissions, more environmental protection.
Hot Water Boiler Model
| Item/Unit/Model | CLHS 0.06- 85/65-Y(Q) | CLHS 0.08-85/65-Y(Q) | CLHS 0.12-85/65-Y(Q) | CLHS 0.175-85/65-Y(Q) | CLHS 0.24-85/65-Y(Q) | CLHS 0.35-85/65- Y(Q) | CLHS 0.48-85/65-Y(Q) | CLHS 0.7- 86/60- Y(Q) |
| Rated Heat Capacity | MW | 0.06 | 0.08 | 0.12 | 0.175 | 0.24 | 0.35 | 0.48 | 0.7 |
| Working Pressure | Mpa | Non-pressure |
| Output Water Temp | ℃ | 85 |
| Input Water Temp | ℃ | 65 |
| Thermal Efficiency | % | 90 |
| Water Volume | L | 140 | 186 | 250 | 310 | 420 | 660 | 660 | 1400 |
| Water Outlet | DN | 50 | 50 | 50 | 65 | 65 | 80 | 80 | 100 |
| Water Inlet | DN | 50 | 50 | 50 | 65 | 65 | 80 | 80 | 1400 |
| Drain Valve | DN | 50 | 50 | 50 | 65 | 65 | 80 | 80 | 100 |
| Electric Consumption | Kw/h | 0.3 | 0.3 | 0.4 | 0.65 | 0.8 | 1 | 1 | 3.3 |
| Chimney | mm | 159 | 159 | 219 | 219 | 219 | 219 | 219 | 300 |
| Dimensions | Length | mm | 640 | 750 | 750 | 800 | 910 | 1060 | 1075 | 1400 |
| Width | mm | 640 | 750 | 750 | 800 | 910 | 1060 | 1075 | 1400 |
| Height | mm | 1320 | 1330 | 1560 | 1650 | 1770 | 1940 | 1980 | 2600 |
| Base Dimensions | mm | 640×640 | 750×750 | 750×750 | 790×790 | 910×910 | 1060×1060 | 1160×1160 | 1400×1400 |
| Transport Weight | Kg | 291 | 335 | 363 | 433 | 569 | 830 | 910 | 1274 |
| Fuel Consumption | Diesel | Kg/h | 5.6 | 7.5 | 11.3 | 16.4 | 22.5 | 32.8 | 52.1 | 65.7 |
| Natural Gas | Nm³/h | 6.6 | 8.86 | 13.2 | 19.4 | 26.6 | 38.8 | 42.2 | 77.5 |
| City Gas | Nm³/h | 13.2 | 17.7 | 26.4 | 38.8 | 53.2 | 77.6 | 106.4 | 155 |
| Largest Transport Size | Length | mm | 710 | 795 | 805 | 860 | 975 | 1130 | 1135 | 1470 |
| Width | mm | 730 | 730 | 730 | 894 | 1010 | 1150 | 1155 | 1500 |
| Height | mm | 1325 | 1325 | 1562 | 1652 | 1771 | 2001 | 2021 | 2331 |
Advantages
1. Flow interrupters are set in the fire tube to slow down the rate
of the mist flow and increase the heat efficiency.
2. Boilers have a large water capacity and have wide adoptability
to the load.
3. An open able ash clean door is set at the bottom of the boiler
The top cover of the boiler can be opened for easy cleaning ash and
prolong the endurance of the boiler.
4. Best controllers is employed for the boiler for make the safety
is available, and lower the running cost to a great extent.

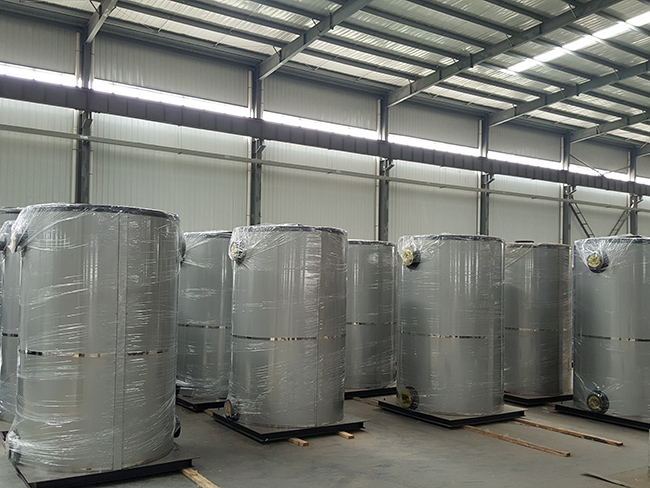

Packing & Delivery
According to customer's requirements, our company can provide FOB
inland transporation, CFR/ CIF ocean delivery.
For ensure the customer get the quality products smoothly and
safely, our company has professional transporation team for
handling the cargo loading, safe transporation, cargo discharge.
