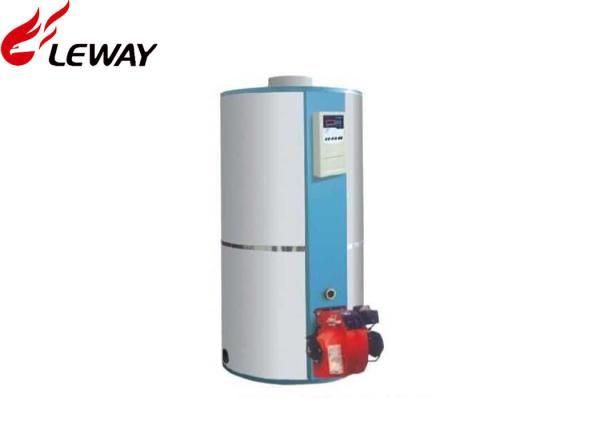

High Efficiency Low Pressure CLHS Series Diesel Oil Fired Hot Water
Boiler
Product Description
1.Furnace big, high radiate, three return design, combustion air is
full, high-efficiency heating surface. Using high thermal
resistance of insulation materials, boilers, heat losses to the
minimum
2.More than 90% thermal efficiency. Intelligent, automatically
control, with automatic temperature regulation, over-temperature
standby.
3.Burners are used by importing, pressure spray, burning
completely, low noise. thus Combustion intensity will be reduced
dust emissions reduction of harmful gases.
4.Confined by connecting structure, safe, reliable, long service
life. Super temperature, cut water, overload, ignition failure,
abnormal flameout, gas boiler pressure, all can do self-test
multiple chain protection.
Why Choose LEWAY Boiler?
1. Powerful technical support, over 10years experiences in boiler
making and selling inland& abroad
2. 2years Warranty & full-life services with many considerate
policies
3. Fast response within 24hours, 10-60days delivery after deposit
4. Engineer installation service, fast spare parts services
5. Factory selling with bottom price, as well as completed export
service
Hot Water Boiler Model
| Item/Unit/Model | CLHS 0.06- 85/65-Y(Q) | CLHS 0.08-85/65-Y(Q) | CLHS 0.12-85/65-Y(Q) | CLHS 0.175-85/65-Y(Q) | CLHS 0.24-85/65-Y(Q) | CLHS 0.35-85/65- Y(Q) | CLHS 0.48-85/65-Y(Q) | CLHS 0.7- 86/60- Y(Q) |
| Rated Heat Capacity | MW | 0.06 | 0.08 | 0.12 | 0.175 | 0.24 | 0.35 | 0.48 | 0.7 |
| Working Pressure | Mpa | Non-pressure |
| Output Water Temp | ℃ | 85 |
| Input Water Temp | ℃ | 65 |
| Thermal Efficiency | % | 90 |
| Water Volume | L | 140 | 186 | 250 | 310 | 420 | 660 | 660 | 1400 |
| Water Outlet | DN | 50 | 50 | 50 | 65 | 65 | 80 | 80 | 100 |
| Water Inlet | DN | 50 | 50 | 50 | 65 | 65 | 80 | 80 | 1400 |
| Drain Valve | DN | 50 | 50 | 50 | 65 | 65 | 80 | 80 | 100 |
| Electric Consumption | Kw/h | 0.3 | 0.3 | 0.4 | 0.65 | 0.8 | 1 | 1 | 3.3 |
| Chimney | mm | 159 | 159 | 219 | 219 | 219 | 219 | 219 | 300 |
| Dimensions | Length | mm | 640 | 750 | 750 | 800 | 910 | 1060 | 1075 | 1400 |
| Width | mm | 640 | 750 | 750 | 800 | 910 | 1060 | 1075 | 1400 |
| Height | mm | 1320 | 1330 | 1560 | 1650 | 1770 | 1940 | 1980 | 2600 |
| Base Dimensions | mm | 640×640 | 750×750 | 750×750 | 790×790 | 910×910 | 1060×1060 | 1160×1160 | 1400×1400 |
| Transport Weight | Kg | 291 | 335 | 363 | 433 | 569 | 830 | 910 | 1274 |
| Fuel Consumption | Diesel | Kg/h | 5.6 | 7.5 | 11.3 | 16.4 | 22.5 | 32.8 | 52.1 | 65.7 |
| Natural Gas | Nm³/h | 6.6 | 8.86 | 13.2 | 19.4 | 26.6 | 38.8 | 42.2 | 77.5 |
| City Gas | Nm³/h | 13.2 | 17.7 | 26.4 | 38.8 | 53.2 | 77.6 | 106.4 | 155 |
| Largest Transport Size | Length | mm | 710 | 795 | 805 | 860 | 975 | 1130 | 1135 | 1470 |
| Width | mm | 730 | 730 | 730 | 894 | 1010 | 1150 | 1155 | 1500 |
| Height | mm | 1325 | 1325 | 1562 | 1652 | 1771 | 2001 | 2021 | 2331 |
Application scope
1. Heating supply: supply heating source for radiator,central air-conditioning,floor
radiation,etc heating systems;
2. Industrial application: plant ,workshop,oil field pipeline heating source;
3. Breeding industry:Winter seafood,fish and shrimp;
4. Entertainment and hotel industry:supply hot water for hotel,pool,sauna,etc.
Packaging & Shipping
1. Packing way: nude packaging for boiler main part and wood box
packaging for boiler accessories.
2. All goods will be reforced after packing into containers.
3. We have stable shipping company to cooperate. They will confirm
the safty of the goods.
4. Shipping way is different according to customer's country.
Mostly by sea. Some country by train.
