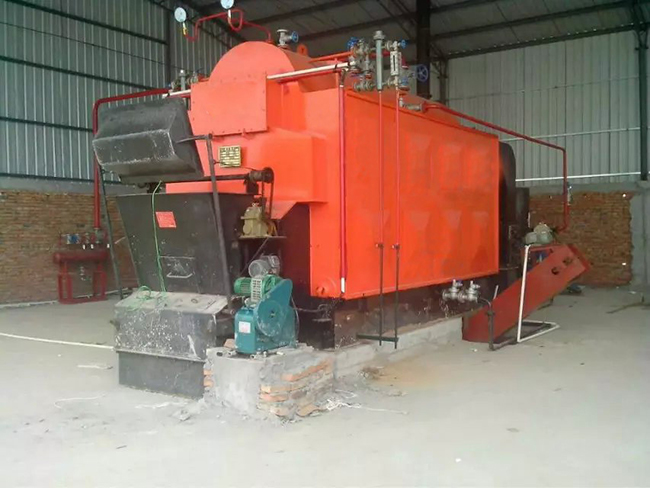

Steam Boiler Model
| Item/Unit/Model | DZL1- 0.7(1.25) | DZL2-0.7(1.25) | DZL4- 1.25 | DZL6- 1.25 | DZL8- 1.25 | DZL10-1.25 |
| Rated steam capacity | t/h | 1 | 2 | 4 | 6 | 8 | 10 |
| Rated working pressure | Mpa | 0.7(1.25) | 0.7(1.25) | 1.25 | 1.25 | 1.25 | 1.25 |
| Rated steam temperature | ℃ | 171(194) | 171(194) | 194 | 194 | 194 | 194 |
| Rated feedwater temperature | ℃ | 20 | 20 | 20 | 20 | 20 | 20 |
| Heating surface | ㎡ | 39.5 | 76.12 | 135.98 | 226.72 | 396.26 | 412.3 |
| Grate area | ㎡ | 2.65 | 3.74 | 4.3 | 7.22 | 10.3 | 11.8 |
| Fuel type | kg | Coal | Coal | Coal | Coal | Coal | Coal |
| Thermal efficiency | % | 77.16 | 77 | 78 | 81 | 81 | 79.6 |
| Fuel consumption | kg/h | 155 | 311 | 615 | 888 | 1185 | 1507 |
| Emission concentration | mg/Nm³ | ＜80 | ＜80 | ＜80 | ＜80 | ＜80 | ＜80 |
| External Dimension | L | m | 4.12 | 5.6 | 6.78 | 6.92 | 7.56 | 9.5 |
| W | m | 1.92 | 2.6 | 2.73 | 2.83 | 3.28 | 3.35 |
| H | m | 3.25 | 3.32 | 3.25 | 3.72 | 4.25 | 4.9 |
| Boiler Weight | t | 11.5 | 22.73 | 27.26 | 38.13 | 54.26 | 57.63 |
| Main steam valve | mm | 50 | 80 | 100 | 150 | 150 | 150 |
| Feedwater valve | mm | 32 | 40 | 40 | 40 | 40 | 50 |
| Safety valve | mm | 2×40 | 2×50 | 2×50 | 2×80 | 2×80 | 2×80 |
| Drain valve | mm | 40 | 40,50 | 40,50 | 40,50 | 40,50 | 40,50 |
| Level gauge | mm | 25 | 25 | 25 | 25 | 25 | 25 |
Application
Medicine, chemical, light industry, textile, building material,
cultivation, food and beverage, plastic foam, printing, dyeing and
washing, rubber processing, paper products,wood processing, hotel,
clothing and leather manufacturer etc.
FAQ
Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Jiaozuo Henan.
Q: Can I get guarantee of products?
A: Yes, every product is 2 year quality warranty under customer
correct using the products.
Q: Do you have any Certificate?
A: Yes. Each of our boiler has China GB certificate. If you need CE
ASME or AS, we can help you to get it.
Q: How can I pay you?
A: T/T, L/C is very well used.
Q: Could you offer some wear parts?
A: Yes, some chain grate bars, electric equipments in control panel
box for example.
Q: What about the maintenance?
A: I will offer you the timely maintenance way sheet after
installation of the boiler mainly parts.
