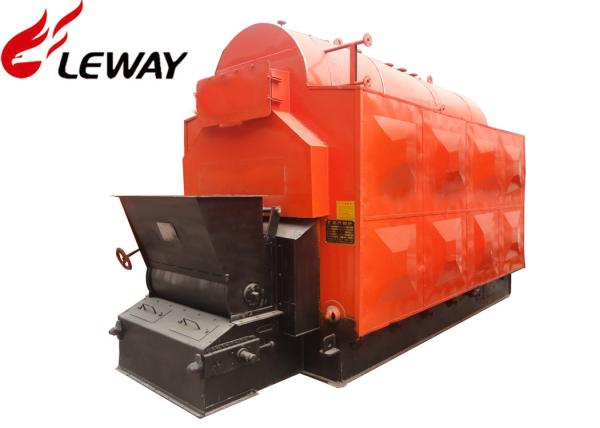

Automatic Biomass Steam Boiler 80% Thermal Efficiency For Food Industry

    Buy cheap Automatic Biomass Steam Boiler 80% Thermal Efficiency For Food Industry from wholesalers

    Buy cheap Automatic Biomass Steam Boiler 80% Thermal Efficiency For Food Industry from wholesalers
    • Buy cheap Automatic Biomass Steam Boiler 80% Thermal Efficiency For Food Industry from wholesalers

    Automatic Biomass Steam Boiler 80% Thermal Efficiency For Food Industry

    Ask Lasest Price
    Brand Name : LEWAY BOILER
    Model Number : DZL
    Certification : SGS, ISO, OHSAS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 3000 Ton/Tons per Year
    Delivery Time : Within 20 working days
    • Product Details
    • Company Profile

    Automatic Biomass Steam Boiler 80% Thermal Efficiency For Food Industry

    Automatic 1 - 10tons / h Biomass Steam Boiler For Food Industrial


    Product Description
    Product Name

    Biomass Steam Boiler


    Fuel Type

    Biomass


    Thermal Efficiency

    80%


    Operation Control

    Automatic


    Structure

    Fire Tubes


    After-sales Service Provided

    Engineers Available To Service Machinery Overseas




    Quality Assurance


    1. Strength calculation test report of applied materials
    2. Whole set of pure water processor line featured with RO anti-saturation and advanced testing devices
    3. Hydraulic test report: ensure the standard working pressure and safety
    4. Third-party inspection report-Jiao Special Equipment Inspection & Technical Research


    Steam Boiler Model


    Item/Unit/Model

    DZL1-

    0.7(1.25)

    DZL2-

    0.7(1.25)

    DZL4-

    1.25

    DZL6-

    1.25

    DZL8-

    1.25

    DZL10-

    1.25

    Rated steam capacityt/h1246810
    Rated working pressureMpa0.7(1.25)0.7(1.25)1.251.251.251.25
    Rated steam temperature171(194)171(194)194194194194
    Rated feedwater temperature202020202020
    Heating surface39.576.12135.98226.72396.26412.3
    Grate area2.653.744.37.2210.311.8
    Fuel typekgCoalCoalCoalCoalCoalCoal
    Thermal efficiency%77.167778818179.6
    Fuel consumptionkg/h15531161588811851507
    Emission concentrationmg/Nm³<80<80<80<80<80<80
    External DimensionLm4.125.66.786.927.569.5
    Wm1.922.62.732.833.283.35
    Hm3.253.323.253.724.254.9
    Boiler Weightt11.522.7327.2638.1354.2657.63
    Main steam valvemm5080100150150150
    Feedwater valvemm324040404050
    Safety valvemm2×402×502×502×802×802×80
    Drain valvemm4040,5040,5040,5040,5040,50
    Level gaugemm252525252525

    Main Features:


    a. Big combustion furnace, spirally corrugated tubes, dust collector, automactic operation etc. can fully enhance the thermal efficiency and reduce the smoke temperature; also gets simple operation and environmental.


    b. The independent water treatment device can improve the water quality before feeding into the boiler; lengthen the boiler service life.


    c. DZL boiler has automatic fuel deeding/ combustion/ deslagging etc, so the user only need one worker for boiler operation. This will save much of and labour cost and reduce the labour intensity as well.


    d. DZL series is packed boiler. After receiving the goods, user just need to connect the valve instrument/ fans/ chimney/ dust catcher/ water/ electricity for quick operation. And this kind of boiler has simple ignition and quick steam raising, etc features.


    Delivery


    Quality Automatic Biomass Steam Boiler 80% Thermal Efficiency For Food Industry for sale
