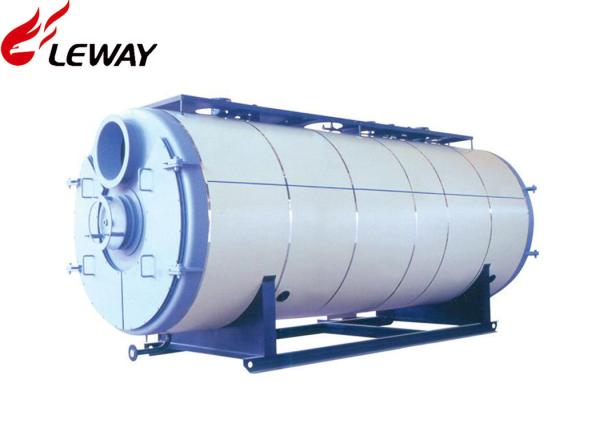

Atmospheric Pressure Horizontal 0.35MW Natural Gas Hot Water Boiler
1. Unique structure, novelty design, sufficient heated surface and
combine with some enforcement heat transmitting which makes the
heat efficiency accomplishing an ideal state. Integrating with
explosion gate, digital control system guarantee the boiler is
safe.
2. Horizontal series hot water boiler classified atmospheric
pressure and pressure endurable structure. Wide range products are
selected according to the site conditions of the customers.
Pressure endurable boiler is suitable for the customers who desire
higher heat supplying requirement. The boiler is delivered in
integrate.
Features
1. Applied international latest technology for big volume
combustion room design, and use Italy combustion machine.
2. Corrugated furnace design make large heat transfer area and
protect furnace.
3. Using fire-tube with screw thread, 1-2 faster heat transfer
efficiency and remove hidden danger of welding cracks.
4. Wet-back boiler reduce faults rate and maintenance cost.
5. With protection devices for overheating, overpressure, lacking
water, leak detection, flameout etc.
Hot Water Boiler Model
| Item / Unit / Model | CWNS 0.35- 85/65-Y(Q) | CWNS 0.48- 85/65-Y(Q) | CWNS 0.58-85/65-Y(Q) | CWNS 0.7- 85/65-Y(Q) | CWNS 1.05-85/65- Y(Q) | CWNS 1.4-85/65-Y(Q) | CWNS 2.1-85/65-Y(Q) | CWNS 2.8-85/65-Y(Q) | CWNS 4.2-85/65-Y(Q) | CWNS 5.6-85/65-Y(Q) | CWNS 7.0-85/65-Y(Q) |
Rated Heat Capacity | MW | 0.35 | 0.48 | 0.58 | 0.7 | 1.05 | 1.4 | 2.1 | 2.8 | 4.2 | 5.6 | 7.0 |
| Working Pressure | MPa | Non Pressure |
Inlet/Outlet Water Temperature | ℃ | 85/65 | 85/65 | 85/65 | 85/65 | 85/65 | 85/65 | 85/65 | 85/65 | 85/65 | 85/65 | 85/65 |
Heating Surface | ㎡ | 19.5 | 21 | 31 | 34.2 | 50.2 | 65.76 | 93.61 | 113.44 | 187.1 | 260.36 | 273.7 |
Thermal Efficiency | % | 91-98% |
| Fuel Consumption | Natural Gas | Nm³/h | 36/38 | 49/52 | 59/63 | 71/76.7 | 104/112 | 142/153.4 | 208/226.1 | 280/304.8 | 414/440.3 | 547/602.5 | 680/730 |
| Diesel | Kg/h | 32.5 | 44.5 | 53.8 | 64.9 | 97.4 | 139.9 | 194.8 | 259.8 | 376.5 | 497.6 | 623.7 |
Electric Consumption | KW/h | 1.1 | 2.3 | 2.3 | 2.3 | 4.0 | 4.7 | 7.5 | 8.2 | 11 | 15 | 22 |
| Transport Weight | Kg | 1550 | 1650 | 1950 | 2100 | 2900 | 3500 | 4950 | 5190 | 10600 | 16000 | 19104 |
| Water Volume | L | 700 | 850 | 1100 | 1500 | 1848 | 2700 | 3600 | 5000 | 9000 | 13300 | 13300 |
| Dimension | Length | mm | 2260 | 2280 | 2395 | 2695 | 3205 | 3685 | 3915 | 4415 | 5300 | 6420 | 6822 |
| Width | mm | 1120 | 1120 | 1475 | 1475 | 1475 | 1665 | 1750 | 1900 | 2380 | 2528 | 2550 |
| Height | mm | 1550 | 1590 | 1750 | 1750 | 1750 | 2015 | 2160 | 2300 | 2742 | 3015 | 3064 |
Water Outlet Pipe | mm | 80 | 80 | 100 | 100 | 125 | 150 | 150 | 200 | 200 | 250 | 250 |
| Water Inlet Pipe | mm | 80 | 80 | 100 | 100 | 125 | 150 | 150 | 200 | 200 | 250 | 250 |
| Atmosphere Open Pipe | mm | 80 | 80 | 100 | 100 | 125 | 150 | 150 | 200 | 200 | 250 | 250 |
| Drain Pipe | mm | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| Chimney | mm | 250 | 250 | 250 | 250 | 250 | 300 | 350 | 400 | 600 | 700 | 800 |
| Basement Dimensions | Length | mm | 1950 | 1980 | 2050 | 2120 | 2620 | 3100 | 3100 | 3560 | 4100 | 5200 | 5380 |
| Width | mm | 800 | 810 | 1000 | 1000 | 1000 | 1100 | 1200 | 1300 | 1750 | 2000 | 2100 |
Usage
The hot water boiler can be used for producing desired hot water
for product manufacturing process in the weave factory, printing
and dying, paper making and rubber, plastic chemical,
pharmaceutical, etc. And for heating room, bath, air conditional
and daily life water in the factories, departments, hotels,
schools, restaurants, services industries etc.
