Fire Tube Electric Boiler System , Low Pressure Steam Generator 20℃ Feedwater Temp

    Buy cheap Fire Tube Electric Boiler System , Low Pressure Steam Generator 20℃ Feedwater Temp from wholesalers

    Buy cheap Fire Tube Electric Boiler System , Low Pressure Steam Generator 20℃ Feedwater Temp from wholesalers
    • Buy cheap Fire Tube Electric Boiler System , Low Pressure Steam Generator 20℃ Feedwater Temp from wholesalers

    Fire Tube Electric Boiler System , Low Pressure Steam Generator 20℃ Feedwater Temp

    Ask Lasest Price
    Brand Name : LEWAY BOILER
    Model Number : WDR
    Certification : SGS, ISO, OHSAS
    Price : Negotiable
    Supply Ability : 3000 Ton/Tons per Year
    Delivery Time : Within 20 working days
    • Product Details
    • Company Profile

    Fire Tube Electric Boiler System , Low Pressure Steam Generator 20℃ Feedwater Temp

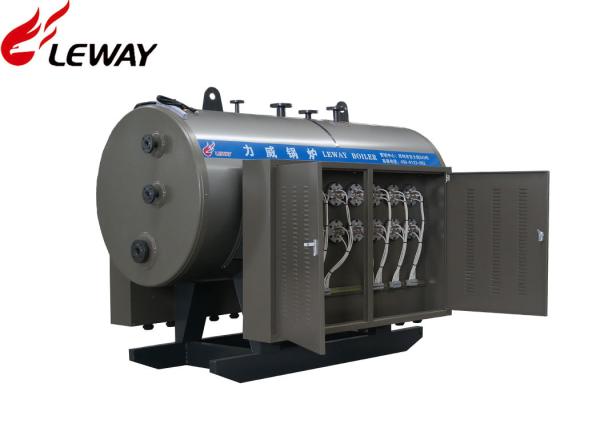

    Factory Outlet Horizontal 1 ton Industrial Electric Steam Boiler


    Product Description

    LEWAY 3 pass high quality 99% thermal efficiency industrial electric steam boiler makes the electrical control cabinet separate from boiler body to avoid affecting the boiler’s working life when the electrical elements become aging. the electrical heated tube can be used for about 20000 hours,its thermal efficiency could almost be 99% and will not release NOX to the air, it is environmental. the control system is PLC screen, and indicators, Chinese and English display,etc



    Why choose our products?


    We are a professional boilers factory.


    1. Economically priced,exquisitely made. Experienced & responsible QC that you can rely on;


    2. Strict quality control system. From the material, welding, to finished boiler shipment, from project , establishment, drawing design, to final audit;


    3. Scientific advanced rational and economical structure design;


    4. Adequate supply capacity, punctual delivery time;


    5. Each boiler system part is from first class brand all over the world or China;


    6. Best after-sale service is provided;


    7. We are the stable and long term supplier of many top companies in China.


    Quality Assurance


    1. Produce according to the national standard, all pressurized components apply fine quality steel


    2. Before delivery, every boiler must be subject to strict inspection and testing, including hydraulic test and X-ray inspection


    3. Selecting the most suitable and famous brand automatic burner to match the boiler so as to guarantee safety and reach rated output


    4. Strength calculation test report of applied materials


    5. Hydraulic test report: ensure the standard working pressure and safety


    6. Third-party inspection report-Jiaozuo Special Equipment Inspection & Technical Research


    Steam Boiler Model


    Item /Unit/ModelWDR0.5-1.0-DWDR-1.0-1.0-DWDR1.5-1.0-DWDR-2.0-1.0-DWDR3.0-1.0-DWDR4.0-1.0-D
    Rated Heat CapacityKg/h50010001500200030004000
    Working PressureMpa111111
    Rated Steam Temp184184184184184184
    Feedwater Temp20
    Thermal Efficiency%98
    Water VolumeL200026002850341558508100
    Steam OutletDN4050658080100
    Water InletDN252540404040
    Drain ValveDN404040404040
    Relief ValveDN40402×402×402×502×50
    Heating-TubeKw/h246060606060
    Heating-Tube UnitQty151218243647
    DimensionsLengthmm272029703200370041804790
    Widthmm176018601860180021002180
    Heightmm173018301830183019802100
    Base Dimensionsmm2220×9002350×10002700×10003200×10003800×11004200×1200
    Transport WeightKg165020012228252529303460


    Application


    Medicine, chemical, light industry, textile, building material, cultivation, food and beverage, plastic foam, printing, dyeing and washing, rubber processing, paper products,wood processing, hotel, clothing and leather manufacturer etc.


    FAQ


    1. Are you factory or trading company?

    We are factory, located in Wuzhi County, Henan Province, China.


    2. How can I get the best price? Please let we know the questions as below:

    What is your fuel, LPG, CNG, or diesel?

    Do you need steam boiler or hot water boiler?

    What is your expectant capacity of the boiler?

    What is your contact information?


    3. Can we visit your factory before the order?

    You can visit our factory anytime.


    4. How we user arranges the installation?

    We will assemble the boiler together before shipment; you just connect the boiler to water, electricity, fuel.
