Quality Assurance
1. Produce according to the national standard, all pressurized
components apply fine quality steel
2. Before delivery, every boiler must be subject to strict
inspection and testing, including hydraulic test and X-ray
inspection
3. Selecting the most suitable and famous brand automatic burner to
match the boiler so as to guarantee safety and reach rated output
4. Strength calculation test report of applied materials
5. Hydraulic test report: ensure the standard working pressure and
safety
6. Third-party inspection report-Jiaozuo Special Equipment
Inspection & Technical Research

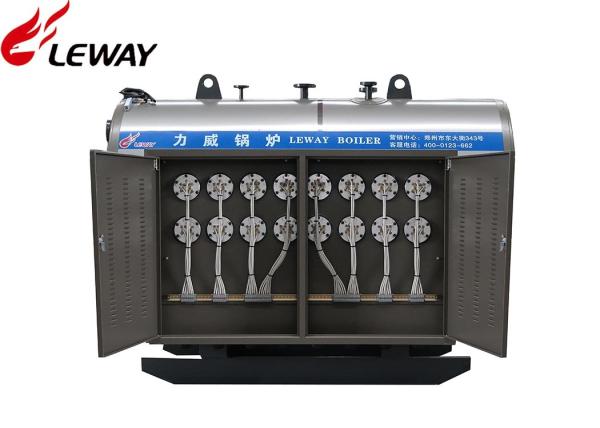

Steam Boiler Model
| Item /Unit/Model | WDR0.5-1.0-D | WDR-1.0-1.0-D | WDR1.5-1.0-D | WDR-2.0-1.0-D | WDR3.0-1.0-D | WDR4.0-1.0-D |
| Rated Heat Capacity | Kg/h | 500 | 1000 | 1500 | 2000 | 3000 | 4000 |
| Working Pressure | Mpa | 1 | 1 | 1 | 1 | 1 | 1 |
| Rated Steam Temp | ℃ | 184 | 184 | 184 | 184 | 184 | 184 |
| Feedwater Temp | ℃ | 20 |
| Thermal Efficiency | % | 98 |
| Water Volume | L | 2000 | 2600 | 2850 | 3415 | 5850 | 8100 |
| Steam Outlet | DN | 40 | 50 | 65 | 80 | 80 | 100 |
| Water Inlet | DN | 25 | 25 | 40 | 40 | 40 | 40 |
| Drain Valve | DN | 40 | 40 | 40 | 40 | 40 | 40 |
| Relief Valve | DN | 40 | 40 | 2×40 | 2×40 | 2×50 | 2×50 |
| Heating-Tube | Kw/h | 24 | 60 | 60 | 60 | 60 | 60 |
| Heating-Tube Unit | Qty | 15 | 12 | 18 | 24 | 36 | 47 |
| Dimensions | Length | mm | 2720 | 2970 | 3200 | 3700 | 4180 | 4790 |
| Width | mm | 1760 | 1860 | 1860 | 1800 | 2100 | 2180 |
| Height | mm | 1730 | 1830 | 1830 | 1830 | 1980 | 2100 |
| Base Dimensions | mm | 2220×900 | 2350×1000 | 2700×1000 | 3200×1000 | 3800×1100 | 4200×1200 |
| Transport Weight | Kg | 1650 | 2001 | 2228 | 2525 | 2930 | 3460 |
Packaging & Shipping
1. Packing way: nude packaging for boiler main part and wood box
packaging for boiler accessories.
2. Container packing: 20 container
3. All goods will be reforced after packing into containers.
4. We have stable shipping company to cooperate. They will confirm
the safty of the goods.
5. Shipping way is different according to customer's country.
Mostly by sea. Some country by train.
FAQ
1. Are you factory or trading company?
We are factory, located in Wuzhi County, Henan Province, China.
2. How can I get the best price? Please let we know the questions
as below:
What is your fuel, LPG, CNG, or diesel?
Do you need steam boiler or hot water boiler?
What is your expectant capacity of the boiler?
What is your contact information?
3. Can we visit your factory before the order?
You can visit our factory anytime.
4. How we user arranges the installation?
We will assemble the boiler together before shipment; you just
connect the boiler to water, electricity, fuel.
