Effective Electric Heating Steam Boiler , Electric Powered Boilers 60 KW/H Heating Tube

Henan Leway Thermal Equipment Manufacture Co., Ltd.
Contact Now
    Buy cheap Effective Electric Heating Steam Boiler , Electric Powered Boilers 60 KW/H Heating Tube from wholesalers

    Buy cheap Effective Electric Heating Steam Boiler , Electric Powered Boilers 60 KW/H Heating Tube from wholesalers
    • Buy cheap Effective Electric Heating Steam Boiler , Electric Powered Boilers 60 KW/H Heating Tube from wholesalers

    Effective Electric Heating Steam Boiler , Electric Powered Boilers 60 KW/H Heating Tube

    Ask Lasest Price
    Brand Name : LEWAY BOILER
    Model Number : WDR
    Certification : SGS, ISO, OHSAS
    Price : Negotiable
    Supply Ability : 3000 Ton/Tons per Year
    Delivery Time : Within 20 working days
    • Product Details
    • Company Profile

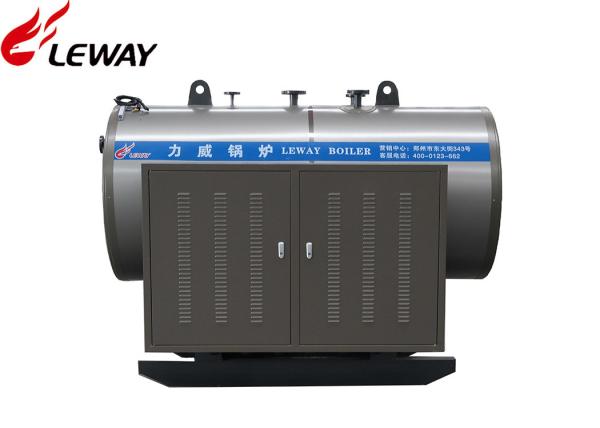

    Effective Electric Heating Steam Boiler , Electric Powered Boilers 60 KW/H Heating Tube

    Low Pressure Industrial Electric Heating Steam Boiler with Fire Tube


    Product Description


    Product Name

    Industrial Electric Steam Boiler


    Fuel Type

    Electric


    Thermal Efficiency

    98%


    Operation Control

    PLC Programmable Control


    After-sales Service Provided

    Engineers Available To Service Machinery Overseas



    Why choose our products?


    We are a professional boilers factory.


    1. Economically priced,exquisitely made. Experienced & responsible QC that you can rely on;


    2. Strict quality control system. From the material, welding, to finished boiler shipment, from project , establishment, drawing design, to final audit;


    3. Scientific advanced rational and economical structure design;


    4. Adequate supply capacity, punctual delivery time;


    5. Each boiler system part is from first class brand all over the world or China;


    6. Best after-sale service is provided;


    7. We are the stable and long term supplier of many top companies in China.


    Steam Boiler Model


    Item /Unit/ModelWDR0.5-1.0-DWDR-1.0-1.0-DWDR1.5-1.0-DWDR-2.0-1.0-DWDR3.0-1.0-DWDR4.0-1.0-D
    Rated Heat CapacityKg/h50010001500200030004000
    Working PressureMpa111111
    Rated Steam Temp184184184184184184
    Feedwater Temp20
    Thermal Efficiency%98
    Water VolumeL200026002850341558508100
    Steam OutletDN4050658080100
    Water InletDN252540404040
    Drain ValveDN404040404040
    Relief ValveDN40402×402×402×502×50
    Heating-TubeKw/h246060606060
    Heating-Tube UnitQty151218243647
    DimensionsLengthmm272029703200370041804790
    Widthmm176018601860180021002180
    Heightmm173018301830183019802100
    Base Dimensionsmm2220×9002350×10002700×10003200×10003800×11004200×1200
    Transport WeightKg165020012228252529303460

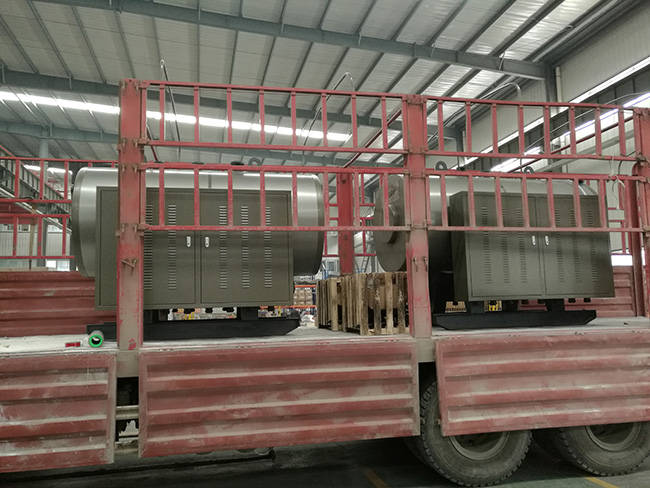

    Packaging & Shipping


    1. Packing way: nude packaging for boiler main part and wood box packaging for boiler accessories.


    2. Container packing: 20 container


    3. All goods will be reforced after packing into containers.


    4. We have stable shipping company to cooperate. They will confirm the safty of the goods.


    5. Shipping way is different according to customer's country. Mostly by sea. Some country by train.


    Quality Assurance


    1. Produce according to the national standard, all pressurized components apply fine quality steel


    2. Before delivery, every boiler must be subject to strict inspection and testing, including hydraulic test and X-ray inspection


    3. Selecting the most suitable and famous brand automatic burner to match the boiler so as to guarantee safety and reach rated output


    4. Strength calculation test report of applied materials


    5. Hydraulic test report: ensure the standard working pressure and safety


    6. Third-party inspection report-Jiaozuo Special Equipment Inspection & Technical Research
