Quality Assurance
1. Produce according to the national standard, all pressurized
components apply fine quality steel
2. Before delivery, every boiler must be subject to strict
inspection and testing, including hydraulic test and X-ray
inspection
3. Selecting the most suitable and famous brand automatic burner to
match the boiler so as to guarantee safety and reach rated output
4. Strength calculation test report of applied materials
5. Hydraulic test report: ensure the standard working pressure and
safety
6. Third-party inspection report-Jiaozuo Special Equipment
Inspection & Technical Research

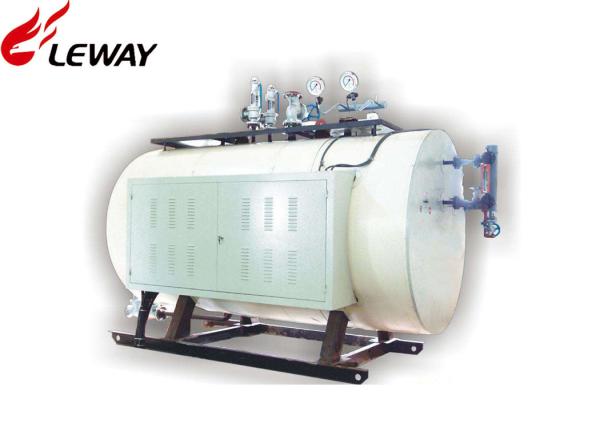

Steam Boiler Model
| Item /Unit/Model | WDR0.5-1.0-D | WDR-1.0-1.0-D | WDR1.5-1.0-D | WDR-2.0-1.0-D | WDR3.0-1.0-D | WDR4.0-1.0-D |
| Rated Heat Capacity | Kg/h | 500 | 1000 | 1500 | 2000 | 3000 | 4000 |
| Working Pressure | Mpa | 1 | 1 | 1 | 1 | 1 | 1 |
| Rated Steam Temp | ℃ | 184 | 184 | 184 | 184 | 184 | 184 |
| Feedwater Temp | ℃ | 20 |
| Thermal Efficiency | % | 98 |
| Water Volume | L | 2000 | 2600 | 2850 | 3415 | 5850 | 8100 |
| Steam Outlet | DN | 40 | 50 | 65 | 80 | 80 | 100 |
| Water Inlet | DN | 25 | 25 | 40 | 40 | 40 | 40 |
| Drain Valve | DN | 40 | 40 | 40 | 40 | 40 | 40 |
| Relief Valve | DN | 40 | 40 | 2×40 | 2×40 | 2×50 | 2×50 |
| Heating-Tube | Kw/h | 24 | 60 | 60 | 60 | 60 | 60 |
| Heating-Tube Unit | Qty | 15 | 12 | 18 | 24 | 36 | 47 |
| Dimensions | Length | mm | 2720 | 2970 | 3200 | 3700 | 4180 | 4790 |
| Width | mm | 1760 | 1860 | 1860 | 1800 | 2100 | 2180 |
| Height | mm | 1730 | 1830 | 1830 | 1830 | 1980 | 2100 |
| Base Dimensions | mm | 2220×900 | 2350×1000 | 2700×1000 | 3200×1000 | 3800×1100 | 4200×1200 |
| Transport Weight | Kg | 1650 | 2001 | 2228 | 2525 | 2930 | 3460 |
Application
Medicine, chemical, light industry, textile, building material,
cultivation, food and beverage, plastic foam, printing, dyeing and
washing, rubber processing, paper products,wood processing, hotel,
clothing and leather manufacturer etc.
FAQ
1. Are you factory or trading company?
We are factory, located in Wuzhi County, Henan Province, China.
2. How can I get the best price? Please let we know the questions
as below:
What is your fuel, LPG, CNG, or diesel?
Do you need steam boiler or hot water boiler?
What is your expectant capacity of the boiler?
What is your contact information?
3. Can we visit your factory before the order?
You can visit our factory anytime.
4. How we user arranges the installation?
We will assemble the boiler together before shipment; you just
connect the boiler to water, electricity, fuel.
