| Product Name |

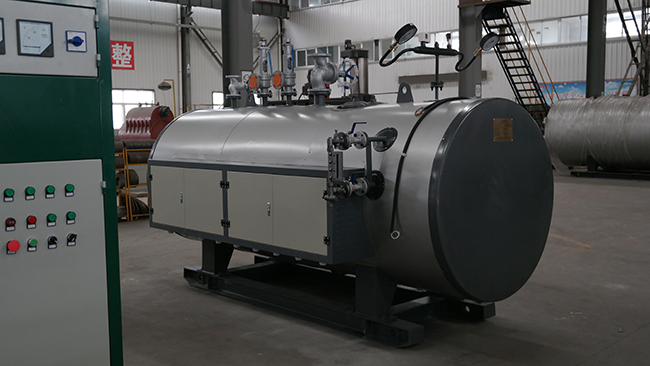

Industrial Electric Steam Boiler
|
| Fuel Type |
Electric
|
| Thermal Efficiency |
98%
|
| Operation Control |
PLC Programmable Control
|
| After-sales Service Provided |
Engineers Available To Service Machinery Overseas
|
Product features
1. The boiler heater adopts the direct heating tube.
2. The thermal efficiency can reach up to 99%, completely realize
zero pollution.
3. The heating is uniform and stable, and the evaporation area is
large.
4. The heating production is rapid.
5. Safe and reliable, easy to operate.
6. Compared other boiler,it is noiseless.
7. Environmental protection, no pollution to the environment.
8. Very easy to operate, which can save the labour cost.
Steam Boiler Model
| Item /Unit/Model | WDR0.5-1.0-D | WDR-1.0-1.0-D | WDR1.5-1.0-D | WDR-2.0-1.0-D | WDR3.0-1.0-D | WDR4.0-1.0-D |
| Rated Heat Capacity | Kg/h | 500 | 1000 | 1500 | 2000 | 3000 | 4000 |
| Working Pressure | Mpa | 1 | 1 | 1 | 1 | 1 | 1 |
| Rated Steam Temp | ℃ | 184 | 184 | 184 | 184 | 184 | 184 |
| Feedwater Temp | ℃ | 20 |
| Thermal Efficiency | % | 98 |
| Water Volume | L | 2000 | 2600 | 2850 | 3415 | 5850 | 8100 |
| Steam Outlet | DN | 40 | 50 | 65 | 80 | 80 | 100 |
| Water Inlet | DN | 25 | 25 | 40 | 40 | 40 | 40 |
| Drain Valve | DN | 40 | 40 | 40 | 40 | 40 | 40 |
| Relief Valve | DN | 40 | 40 | 2×40 | 2×40 | 2×50 | 2×50 |
| Heating-Tube | Kw/h | 24 | 60 | 60 | 60 | 60 | 60 |
| Heating-Tube Unit | Qty | 15 | 12 | 18 | 24 | 36 | 47 |
| Dimensions | Length | mm | 2720 | 2970 | 3200 | 3700 | 4180 | 4790 |
| Width | mm | 1760 | 1860 | 1860 | 1800 | 2100 | 2180 |
| Height | mm | 1730 | 1830 | 1830 | 1830 | 1980 | 2100 |
| Base Dimensions | mm | 2220×900 | 2350×1000 | 2700×1000 | 3200×1000 | 3800×1100 | 4200×1200 |
| Transport Weight | Kg | 1650 | 2001 | 2228 | 2525 | 2930 | 3460 |
Our services
We have professional engineers service team. According to the
customers’ requirement and site specific condition, they can make
the suitable and optimal solution about the after-sales service.
Moreover, LEWAY Boiler set up sales and after sale facilitating
agencies around over 30 regions, to offer the high quality
services.
1. 24hours service hotline.
2. 24 months warranty after delivery.
3. Spare parts are equipped during shipment.
4. Provide instllation, commissioning and maintance service
anytime.
After-sales Service
1. Engineers available to service machinery overseas.
2. We can guarantee 3 years for the boiler host,and also warranty 2
years for auxiliary boiler.
3. If there is any problem in install and use process, fell free to
contact us and we will get back to you in first time to solve the
problem
4. If our reply is still no solution to boiler problems, we will
send engineers on-site service.
