High Efficiency Electric Boiler Heating , Electric Steam Boiler Large Heated Area

    Buy cheap High Efficiency Electric Boiler Heating , Electric Steam Boiler Large Heated Area from wholesalers

    Buy cheap High Efficiency Electric Boiler Heating , Electric Steam Boiler Large Heated Area from wholesalers
    • Buy cheap High Efficiency Electric Boiler Heating , Electric Steam Boiler Large Heated Area from wholesalers

    High Efficiency Electric Boiler Heating , Electric Steam Boiler Large Heated Area

    Ask Lasest Price
    Brand Name : LEWAY BOILER
    Model Number : LDR
    Certification : SGS, ISO, OHSAS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 300 Ton/Tons per Month steam boiler
    Delivery Time : Average 15 Days
    • Product Details
    • Company Profile

    High Efficiency Electric Boiler Heating , Electric Steam Boiler Large Heated Area

    High Efficiency 0.03 - 0.5t Electric Heating Steam Boiler With Accessories


    Product Description


    Product Name

    Electric Heating Steam Boiler


    Fuel Type
    Electric
    Thermal Efficiency

    98%


    Operation Control

    PLC Programmable Control


    After-sales Service Provided

    Engineers Available To Service Machinery Overseas



    High Efficient


    The boiler body has the advantages of optimized design,large heated area,high thermal efficiency,quick temperature rising,and sufficient hot water supply.High-quality burner configuration;Therefore,the fuels are sufficiently burnt and the noise is low.


    Quality Assurance


    1. Strength calculation test report of applied materials
    2. Whole set of pure water processor line featured with RO anti-saturation and advanced testing devices
    3. Hydraulic test report: ensure the standard working pressure and safety
    4. Third-party inspection report-Jiaozuo Special Equipment Inspection & Technical Research

    Steam Boiler Model


    Item/Unit/ModelElectric Steam Generator
    LDR0.03-LDR0.05-LDR0.06-LDR0.07-LDR0.1-LDR-0.2-LDR0.3-LDR0.5-
    Nominal steam pressureMpa0.4/0.70.70.70.70.7
    Nominal capacityKg/h30506575100200300500
    Nominal steam temperature151/170170170170170
    Rated return water temperature20
    Thermal efficiency%98
    Water volumeL232729.629.6106270360750
    Steam outletDN1515151520324040
    Water inletDN1515151515202525
    Sewage valveDN2020202025254040
    Safety valveDN2020202040404040
    Rated voltageV380V 50HZ
    Electric powerKw2436485472144216360
    Heating tube powerKw121818/121812242430
    Heating tube group numberGroup223366912
    DimensionsLengthmm410660660660870990800950
    Widthmm65068068068089010408901180
    Heightmm9601190119011901300143019002000
    Power control boxLengthmm//////800800
    Widthmm//////600600
    Heightmm//////18001800
    Transport weightt0.090.180.190.20.330.380.781.15
    Base DimensionsLengthmm5305305305307008508501070
    Widthmm300530530530800950750900

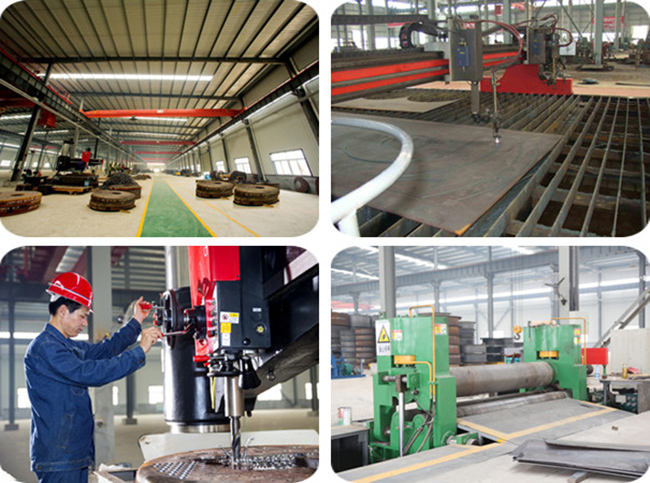

    Modern Workshops


    We have over 120,000sq.m. building area, 200 employees, annual sales amount exceeds 30,000,000USD which includes 25% export amount in worldwide. Our well-equipped facilities and excellent quality control throughout all production stages to totally guarantee customers' satisfaction.
