Our Service
Consultation service: Experienced technicians guidance is available
on the phone, and on the internet.
Installation service: One or more engineers will be dispatched to
the installation site to help install the customers’ boilers.
Training service: We also provide necessary training about boiler
operation and daily maintenance to local workers.
Warm service: Based on customers’ request and budget, our experts
make efficient, reliable solutions, and we produce strictly
following customers’ order. Every customer has the chance to visit
our workshops before placing the order.
Steam Boiler Model
| Item/Unit/Model | DZL1- 0.7(1.25) | DZL2-0.7(1.25) | DZL4- 1.25 | DZL6- 1.25 | DZL8- 1.25 | DZL10-1.25 |
| Rated steam capacity | t/h | 1 | 2 | 4 | 6 | 8 | 10 |
| Rated working pressure | Mpa | 0.7(1.25) | 0.7(1.25) | 1.25 | 1.25 | 1.25 | 1.25 |
| Rated steam temperature | ℃ | 171(194) | 171(194) | 194 | 194 | 194 | 194 |
| Rated feedwater temperature | ℃ | 20 | 20 | 20 | 20 | 20 | 20 |
| Heating surface | ㎡ | 39.5 | 76.12 | 135.98 | 226.72 | 396.26 | 412.3 |
| Grate area | ㎡ | 2.65 | 3.74 | 4.3 | 7.22 | 10.3 | 11.8 |
| Fuel type | kg | Coal | Coal | Coal | Coal | Coal | Coal |
| Thermal efficiency | % | 77.16 | 77 | 78 | 81 | 81 | 79.6 |
| Fuel consumption | kg/h | 155 | 311 | 615 | 888 | 1185 | 1507 |
| Emission concentration | mg/Nm³ | ＜80 | ＜80 | ＜80 | ＜80 | ＜80 | ＜80 |
| External Dimension | L | m | 4.12 | 5.6 | 6.78 | 6.92 | 7.56 | 9.5 |
| W | m | 1.92 | 2.6 | 2.73 | 2.83 | 3.28 | 3.35 |
| H | m | 3.25 | 3.32 | 3.25 | 3.72 | 4.25 | 4.9 |
| Boiler Weight | t | 11.5 | 22.73 | 27.26 | 38.13 | 54.26 | 57.63 |
| Main steam valve | mm | 50 | 80 | 100 | 150 | 150 | 150 |
| Feedwater valve | mm | 32 | 40 | 40 | 40 | 40 | 50 |
| Safety valve | mm | 2×40 | 2×50 | 2×50 | 2×80 | 2×80 | 2×80 |
| Drain valve | mm | 40 | 40,50 | 40,50 | 40,50 | 40,50 | 40,50 |
| Level gauge | mm | 25 | 25 | 25 | 25 | 25 | 25 |
Application
Medicine, chemical, light industry, textile, building material,
cultivation, food and beverage, plastic foam, printing, dyeing and
washing, rubber processing, paper products,wood processing, hotel,
clothing and leather manufacturer etc.
FAQ
Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Jiaozuo Henan.
Q: Can I get guarantee of products?
A: Yes, every product is 2 year quality warranty under customer
correct using the products.
Q: Do you have any Certificate?
A: Yes. Each of our boiler has China GB certificate. If you need CE
ASME or AS, we can help you to get it.
Q: How can I pay you?
A: T/T, L/C is very well used.

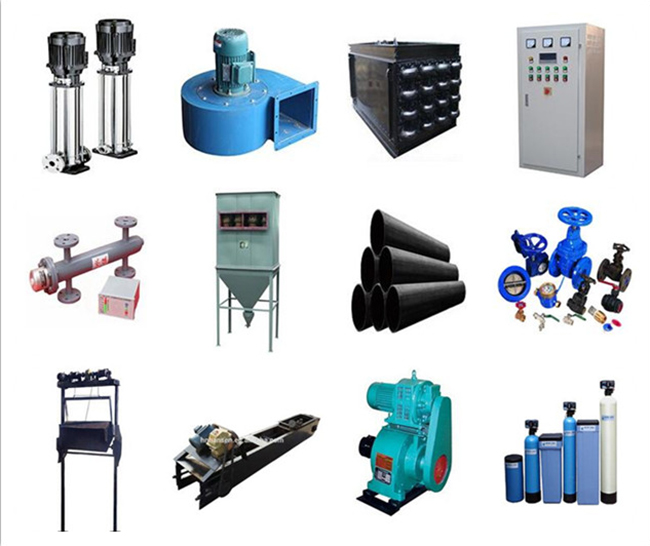

Q: Could you offer some wear parts?
A: Yes, some chain grate bars, electric equipments in control panel
box for example.
Q: What about the maintenance?
A: I will offer you the timely maintenance way sheet after
installation of the boiler mainly parts.
