High Efficiency Oil Fired Central Heating Boilers Fire Tube Structure 0.5 - 20T Capacity

Ask Lasest Price
Brand Name :	LEWAY BOILER
Model Number :	WNS
Certification :	SGS, ISO, OHSAS
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	3000 Ton/Tons per Year
Delivery Time :	Within 20 working days

Add to Cart

Product Details
Company Profile

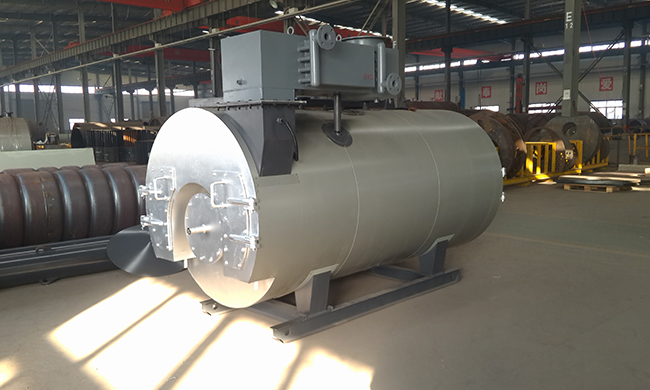

High Efficiency Oil Fired Central Heating Boilers Fire Tube Structure 0.5 - 20T Capacity

SGS Certificate Industrial High Efficiency Oil Fired Steam Boiler

Product Features

1. Quality Burner: WNS series steam boiler adopting high quality low nitrogen split-type burner; preheat the air for burner, raise the furnace's temperature and increase combustion efficiency.

2. PLC automatic Control: WNS series steam boiler adopting advanced touch screen control cabinet and digital computer full automatic controller. The water feeding system controller can automatically regulate water feeding rate, make sure boiler's water stay on the standard water level. According to boiler's working pressure, burner controller can automatically regulate output power; the burner's output has one- two- three stages fire.

3. Safe: Boilers are produced strictly accordance with the relevant national standards, pneumatic hydraulic pressure automatic adjustment, automatic ignition, and water shortage or overpressure flame failure protection.

Steam Boiler Model

Item Unit Model			WNS 0.5-1.0 -Y(Q)	WNS 1-1.0 -Y(Q)	WNS 1-1.25 -Y(Q)	WNS 1.5-1.0 -Y(Q)	WNS 2-1.0 -Y(Q)	WNS 2-1.25 -Y(Q)	WNS 3-1.25 -Y(Q)	WNS 4-1.25 -Y(Q)	WNS 6-1.25 -Y(Q)	WNS 8-1.25 -Y(Q)	WNS 10-1.25 -Y(Q)	WNS 15-1.25 -Y(Q)	WNS 20-1.25 -Y(Q)
Rated Capacity		t	0.5	1	1	1.5	2	2	3	4	6	8	10	15	20
Feedwater Temp		℃	20
Steam Pressure		MPa	1.0	1.0	1.25	1.0	1.0	1.25
Steam Temperature		℃	183.2	183.2	194	183.2	183.2	194
Heating Surface		㎡	25.1	35.2	36.4	53.55	73.1	68	106.7	141.5	185.8	261.8	351.1	513.9	616.7
Thermal Efficiency		%	95%-99%
Fuel Consumption	Diesel	Kg/h	31	67	69	101.6	132.6	133.7	198	280.1	386.1	550	681	1020.8	1372.2
Fuel Consumption	Gas	Nm³/h	38.2	72	72	108	144	144	216	288	432	572	718	1076	1410
Power Consumption		KW	3.2	5	5	6	7	7	15	15	20	26	40	55	65
Boiler Weight		t	3.5	4.8	5.3	5.9	6.8	7.2	9.1	12.3	16.2	19.6	27.4	38	47
Water Volume		m³	1.8	2.8	2.8	3.6	3.9	3.9	6.3	8.5	9	13.3	13.6	23.5	32.3
External Dimension	L	mm	2954	3000	3300	3400	3800	3800	4300	4580	5300	6254	6373	7415	7830
	W	mm	1394	1760	1760	2050	2000	2000	2050	2280	2380	2528	2640	3360	3500
	H	mm	1752	2100	2150	2250	2200	2350	2550	2550	2645	3015	3124	3510	3998
Live Steam Pipe		mm	50	50	50	65	80	80	80	100	125	150	150	200	250
Water Inlet Pipe		mm	25	25	25	40	40	40	40	40	50	50	50	50	65
Relief Valve Pipe		mm	40	40	40	40	40	40	50	50	65	80	80	100	100
Drain Pipe		mm	40	40	40	40	40	40	40	40	40	40	40	50	50
Chimney		mm	300	300	300	300	350	350	400	400	600	700	800	900	1000
Basement	L	mm	2240	2835	2835	2900	3100	3100	3360	3560	4100	5200	5380	6180	6800
Basement	W	mm	950	1100	1100	1200	1200	1200	1450	1500	1750	2000	2100	2300	2650
Transport Size	L	mm	2954	3254	3254	3442	3886	4002	4260	4794	5372	6646	6882	7407	8166
	W	mm	1556	1770	1770	1900	1900	1900	2130	2180	2198	2600	2600	3193	3400
	H	mm	1727	2072	2072	2159	2172	2177	2425	2502	2635	3043	3246	3553	4027

Shipment

1. According to customer's requirements, our company can provide FOB inland transportation, CFR/ CIF ocean delivery.

2. For ensure the customer get the quality products smoothly and safely, our company has professional transportation team for handling the cargo loading, safe transportation, cargo discharge. Our gas fired steam boiler is hot sale in Saudi Arabia, Peru, Thailand , Russia, Nigeria , with good price.

3. Before the shipment, our company assembly the boiler to make whole-set pilot run. We will shoot a long video of each detailed processes; it will help the user to do the installation easier.

FAQ

Q1: Are you trading company or manufacturer ?

A: We are factory.

Q2: When the product can be delivered?

A: Commonly the lead time will be within 15days after receiving 30% deposit or L/C, subject to prior sales.

Q3: What's the advantage of your company?

A: We have exported our boilers and service to more than 50 countries./ we have specialize team work for you, you will get our feedback within 12 hours./ Germany and Italian advanced manufacturing technology.
