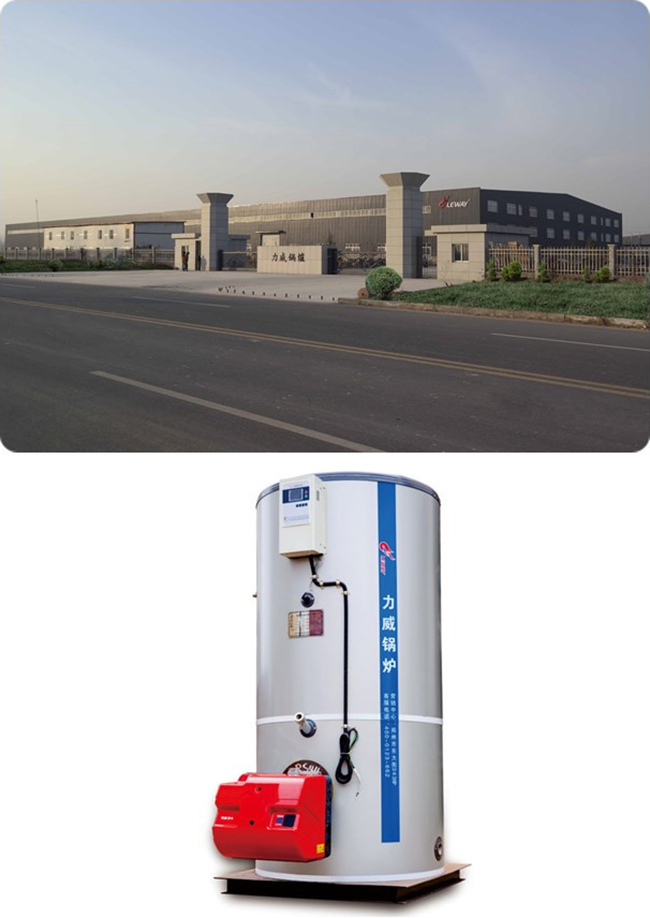

Steam Out Fast 0.3 - 1Ton Vertical Oil Steam Boiler With
Accessories
Product Description
| Product Name | Vertical Steam Boiler
|
| Fuel Type | Diesel, Heavy Oil, Crude Oil |
| Thermal Efficiency |
92%
|
| Operation Control |
PLC Programmable Control
|
| After-sales Service Provided |
Engineers Available To Service Machinery Overseas
|
High Efficient
The boiler body has the advantages of optimized design,large heated
area,high thermal efficiency,quick temperature rising,and
sufficient hot water supply.High-quality burner configuration;Therefore,the fuels are sufficiently burnt and the noise is low.
Quality Assurance
1. Strength calculation test report of applied materials
2. Whole set of pure water processor line featured with RO
anti-saturation and advanced testing devices
3. Hydraulic test report: ensure the standard working pressure and
safety
4. Third-party inspection report-Jiaozuo Special Equipment Inspection
& Technical Research
Steam Boiler Model
| Item Umit Model | Steam Boiler |
| LHS0.3- | LHS0.5- | LHS0.75- | LHS1- |
| 0.7-Y.Q | 0.7-Y.Q | 1.0-Y.Q | 0.7-Y.Q | 0.7-Y.Q |
| Nominal Capacity | Kg/h | 300 | 500 | 500 | 750 | 1000 |
| Nominal Steam Pressure | Mpa | 0.7 | 0.7 | 1 | 0.7 | 0.7 |
| Nominal Steam Temperature | ℃ | 170 | 170 | 184 | 170 | 170 |
| Feed Water Temperature | ℃ | 20 |
| Thermal Efficiency | % | >90 |
| Water Volume | L | 660 | 770 | 770 | 1160 | 1310 |
| Steam Outlet | DN | 40 | 40 | 50 |
| Inlet | DN | 25 | 32 | 25 | 40 |
| Sewage Valve | DN | 40 |
| Safety Valve | DN | 40 | 40/40 |
| Smoke Crossing | mm | 219 | 300 |
| Base Dimensions | mm | 1190*1190 | 1450*1450 | 1620*1620 |
| Dimensions | Length | mm | 1450 | 1500 | 1750 |
| Width | mm | 1450 | 1500 | 1750 |
| Height | mm | 2250 | 2120 | 2250 | 2470 |
| Transport Weight | T | 1.4 | 1.78 | 2 | 2.3 | 2.46 |
| Gas Pressure | Kpa | 1.5-3.5 | 4-8 |
| Gas Pipe | DN | 32 | 40 | 50 |
| Fuel Consumption | L.N.G | Nm³/h | 23.5 | 39.2 | 58.8 | 78.4 |
| L.P.G | Nm³/h | 9 | 15 | 22.5 | 30 |
| C.G | Nm³/h | 50 | 83.3 | 124.9 | 166.6 |
FAQ
1. Are you factory or trading company?
We are factory, located in Wuzhi County, Henan Province, China.
2. How can I get the best price? Please let we know the questions
as below:
What is your fuel, LPG, CNG, or diesel?
Do you need steam boiler or hot water boiler?
What is your expectant capacity of the boiler?
What is your contact information?
3. Can we visit your factory before the order?
You can visit our factory anytime.
4. How we user arranges the installation?
We will assemble the boiler together before shipment; you just
connect the boiler to water, electricity, fuel.
