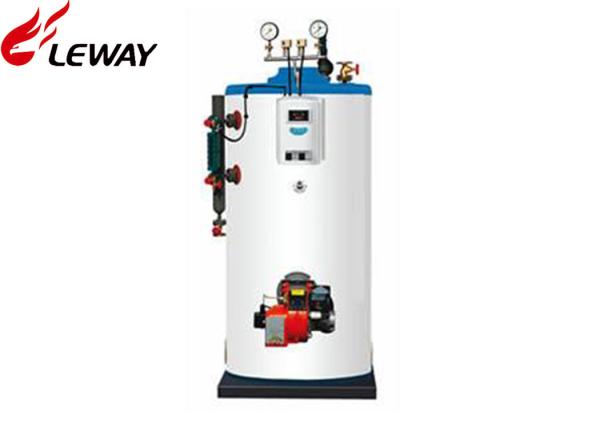

Fire Tube Industrial Oil Fired Vertical Steam Boiler for Textile
Industry
Product Description
Excellent Structure
| Two Fire-Passes | Automatic Control | Automatic Water Feeding |
| New Wet-Back Design | Automatic Water-Level Control |
| Corrugated Furnace | Automatic Pressure Regulation |
| Corrugated Fire-tube | Automatic Over-Pressure Relief |
Quality Burner
| European Brand (BALTUR) | Visible Operation | Visible Working Pressure |
| Complete Combustion System | Visible Fuel Consumption |
| Automatic Ignition | Visible Working Pressure |
| Two-Stages Fire | Visible Steam Temperature |
Quality Assurance
1. Produce according to the national standard, all pressurized
components apply fine quality steel
2. Before delivery, every boiler must be subject to strict
inspection and testing, including hydraulic test and X-ray
inspection
3. Selecting the most suitable and famous brand automatic burner to
match the boiler so as to guarantee safety and reach rated output
4. Applicable fuel: Nature gas,LPG,Coal gas
5. Providing steam for small steam capacity users
High Efficient
The boiler body has the advantages of optimized design,large heated
area,high thermal efficiency,quick temperature rising,and
sufficient hot water supply.High-quality burner
configuration;Therefore,the fuels are sufficiently burnt and the
noise is low.
Steam Boiler Model
| Item Umit Model | Steam Boiler |
| LHS0.3- | LHS0.5- | LHS0.75- | LHS1- |
| 0.7-Y.Q | 0.7-Y.Q | 1.0-Y.Q | 0.7-Y.Q | 0.7-Y.Q |
| Nominal Capacity | Kg/h | 300 | 500 | 500 | 750 | 1000 |
| Nominal Steam Pressure | Mpa | 0.7 | 0.7 | 1 | 0.7 | 0.7 |
| Nominal Steam Temperature | ℃ | 170 | 170 | 184 | 170 | 170 |
| Feed Water Temperature | ℃ | 20 |
| Thermal Efficiency | % | >90 |
| Water Volume | L | 660 | 770 | 770 | 1160 | 1310 |
| Steam Outlet | DN | 40 | 40 | 50 |
| Inlet | DN | 25 | 32 | 25 | 40 |
| Sewage Valve | DN | 40 |
| Safety Valve | DN | 40 | 40/40 |
| Smoke Crossing | mm | 219 | 300 |
| Base Dimensions | mm | 1190*1190 | 1450*1450 | 1620*1620 |
| Dimensions | Length | mm | 1450 | 1500 | 1750 |
| Width | mm | 1450 | 1500 | 1750 |
| Height | mm | 2250 | 2120 | 2250 | 2470 |
| Transport Weight | T | 1.4 | 1.78 | 2 | 2.3 | 2.46 |
| Gas Pressure | Kpa | 1.5-3.5 | 4-8 |
| Gas Pipe | DN | 32 | 40 | 50 |
| Fuel Consumption | L.N.G | Nm³/h | 23.5 | 39.2 | 58.8 | 78.4 |
| L.P.G | Nm³/h | 9 | 15 | 22.5 | 30 |
| C.G | Nm³/h | 50 | 83.3 | 124.9 | 166.6 |
Why choose our products?
We are a professional boilers factory.
1. Economically priced,exquisitely made. Experienced & responsible
QC that you can rely on;
2. Strict quality control system. From the material, welding, to
finished boiler shipment, from project , establishment, drawing
design, to final audit;
3. Scientific advanced rational and economical structure design;
4. Adequate supply capacity, punctual delivery time;
5. Each boiler system part is from first class brand all over the
world or China;
6. Best after-sale service is provided;
7. We are the stable and long term supplier of many top companies
in China.
Application areas
1, washing ironing industry: dry cleaning machine, dryer, washing
machine, dehydration machine, ironing machine, iron and other
equipment supporting the use of
2, bio-chemical industry: fermentation tank, reactor, sandwich pan,
mixer, emulsifier and other equipment supporting the use of
3, the packaging machinery industry: labeling machine, supporting
the use of standard machine
4, food machinery industry: tofu machine, steamer, sterilization
tank, packaging machine, paint equipment,
sealing machine and other equipment supporting the use of
5, other industries: (oil, automobile) steam cleaning industry,
(hotels, dormitories, schools) steam or hot water supply, (bridges,
railways)etc.
