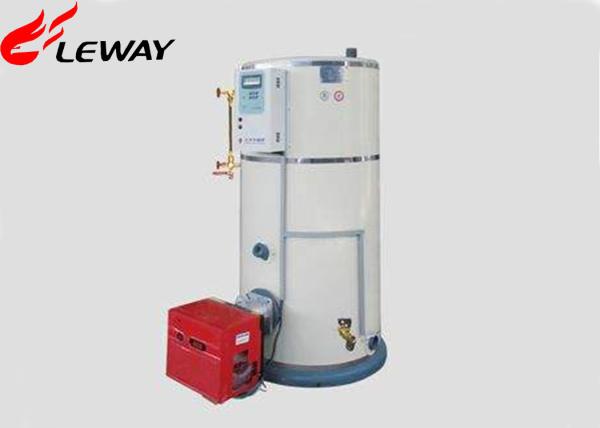

High Energy Efficient 100-1000KG/H Vertical Firetube Steam Boiler
Product Description
| Product Name |
Vertical Steam Boiler
|
| Fuel Type |
Diesel, Heavy Oil, Crude Oil
|
| Thermal Efficiency |
92%
|
| Operation Control |
PLC Programmable Control
|
| After-sales Service Provided |
Engineers Available To Service Machinery Overseas
|
Standard Features
1. Durability
2. Good Quality. Each unit is tested and inspected and registered
with the National Board of Boiler and Pressure Vessel Inspectors.
3. High Efficiency. LHS vertical boilers is designed for optimum
fuel efficiency.
4. Low Maintenance
5. Easy Access
6. Compact Structure
High Efficient
The boiler body has the advantages of optimized design,large heated
area,high thermal efficiency,quick temperature rising,and
sufficient hot water supply.High-quality burner
configuration;Therefore,the fuels are sufficiently burnt and the
noise is low.
Quality Assurance
1. Produce according to the national standard, all pressurized
components apply fine quality steel
2. Before delivery, every boiler must be subject to strict
inspection and testing, including hydraulic test and X-ray
inspection
3. Selecting the most suitable and famous brand automatic burner to
match the boiler so as to guarantee safety and reach rated output
4. Applicable fuel: Nature gas,LPG,Coal gas
5. Providing steam for small steam capacity users
Steam Boiler Model
| Item Umit Model | Steam Boiler |
| LHS0.3- | LHS0.5- | LHS0.75- | LHS1- |
| 0.7-Y.Q | 0.7-Y.Q | 1.0-Y.Q | 0.7-Y.Q | 0.7-Y.Q |
| Nominal Capacity | Kg/h | 300 | 500 | 500 | 750 | 1000 |
| Nominal Steam Pressure | Mpa | 0.7 | 0.7 | 1 | 0.7 | 0.7 |
| Nominal Steam Temperature | ℃ | 170 | 170 | 184 | 170 | 170 |
| Feed Water Temperature | ℃ | 20 |
| Thermal Efficiency | % | >90 |
| Water Volume | L | 660 | 770 | 770 | 1160 | 1310 |
| Steam Outlet | DN | 40 | 40 | 50 |
| Inlet | DN | 25 | 32 | 25 | 40 |
| Sewage Valve | DN | 40 |
| Safety Valve | DN | 40 | 40/40 |
| Smoke Crossing | mm | 219 | 300 |
| Base Dimensions | mm | 1190*1190 | 1450*1450 | 1620*1620 |
| Dimensions | Length | mm | 1450 | 1500 | 1750 |
| Width | mm | 1450 | 1500 | 1750 |
| Height | mm | 2250 | 2120 | 2250 | 2470 |
| Transport Weight | T | 1.4 | 1.78 | 2 | 2.3 | 2.46 |
| Gas Pressure | Kpa | 1.5-3.5 | 4-8 |
| Gas Pipe | DN | 32 | 40 | 50 |
| Fuel Consumption | L.N.G | Nm³/h | 23.5 | 39.2 | 58.8 | 78.4 |
| L.P.G | Nm³/h | 9 | 15 | 22.5 | 30 |
| C.G | Nm³/h | 50 | 83.3 | 124.9 | 166.6 |
Packaging & Shipping
1. Packing way: nude packaging for boiler main part and wood box
packaging for boiler accessories.
2. Container packing: 20 container
3. All goods will be reforced after packing into containers.
4. We have stable shipping company to cooperate. They will confirm
the safty of the goods.
5. Shipping way is different according to customer's country.
Mostly by sea. Some country by train.
