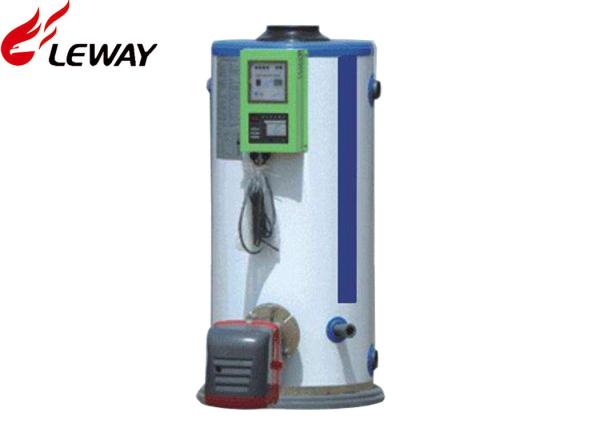

300 - 1000KG/H Vertical Oil Fired Steam Boiler with SGS Certificate
Product Description
Excellent Structure
| Two Fire-Passes | Automatic Control | Automatic Water Feeding |
| New Wet-Back Design | Automatic Water-Level Control |
| Corrugated Furnace | Automatic Pressure Regulation |
| Corrugated Fire-tube | Automatic Over-Pressure Relief |
Quality Burner
| European Brand (BALTUR) | Visible Operation | Visible Working Pressure |
| Complete Combustion System | Visible Fuel Consumption |
| Automatic Ignition | Visible Working Pressure |
| Two-Stages Fire | Visible Steam Temperature |
Application areas
1, washing ironing industry: dry cleaning machine, dryer, washing
machine, dehydration machine, ironing machine, iron and other
equipment supporting the use of
2, bio-chemical industry: fermentation tank, reactor, sandwich pan,
mixer, emulsifier and other equipment supporting the use of
3, the packaging machinery industry: labeling machine, supporting
the use of standard machine
4, food machinery industry: tofu machine, steamer, sterilization
tank, packaging machine, paint equipment,
sealing machine and other equipment supporting the use of
5, other industries: (oil, automobile) steam cleaning industry,
(hotels, dormitories, schools) steam or hot water supply, (bridges,
railways)etc.
Our Services
Warranty:
Two-year warranty with full life service.
Boiler spare parts service:
A full range of original spare parts are available for all LEWAY
boilers
Service before sale:
Provide relative technical data for customer choosing
equipments,layout drawing,foundation,general grawing.
Service after sale:
Help customer for installation and training. Engineer abroad
service is available.
Maintenance and repair for one year.
Steam Boiler Model
| Item Umit Model | Steam Boiler |
| LHS0.3- | LHS0.5- | LHS0.75- | LHS1- |
| 0.7-Y.Q | 0.7-Y.Q | 1.0-Y.Q | 0.7-Y.Q | 0.7-Y.Q |
| Nominal Capacity | Kg/h | 300 | 500 | 500 | 750 | 1000 |
| Nominal Steam Pressure | Mpa | 0.7 | 0.7 | 1 | 0.7 | 0.7 |
| Nominal Steam Temperature | ℃ | 170 | 170 | 184 | 170 | 170 |
| Feed Water Temperature | ℃ | 20 |
| Thermal Efficiency | % | >90 |
| Water Volume | L | 660 | 770 | 770 | 1160 | 1310 |
| Steam Outlet | DN | 40 | 40 | 50 |
| Inlet | DN | 25 | 32 | 25 | 40 |
| Sewage Valve | DN | 40 |
| Safety Valve | DN | 40 | 40/40 |
| Smoke Crossing | mm | 219 | 300 |
| Base Dimensions | mm | 1190*1190 | 1450*1450 | 1620*1620 |
| Dimensions | Length | mm | 1450 | 1500 | 1750 |
| Width | mm | 1450 | 1500 | 1750 |
| Height | mm | 2250 | 2120 | 2250 | 2470 |
| Transport Weight | T | 1.4 | 1.78 | 2 | 2.3 | 2.46 |
| Gas Pressure | Kpa | 1.5-3.5 | 4-8 |
| Gas Pipe | DN | 32 | 40 | 50 |
| Fuel Consumption | L.N.G | Nm³/h | 23.5 | 39.2 | 58.8 | 78.4 |
| L.P.G | Nm³/h | 9 | 15 | 22.5 | 30 |
| C.G | Nm³/h | 50 | 83.3 | 124.9 | 166.6 |
Why choose our products?
We are a professional boilers factory.
1. Economically priced,exquisitely made. Experienced & responsible
QC that you can rely on;
2. Strict quality control system. From the material, welding, to
finished boiler shipment, from project , establishment, drawing
design, to final audit;
3. Scientific advanced rational and economical structure design;
4. Adequate supply capacity, punctual delivery time;
5. Each boiler system part is from first class brand all over the
world or China;
6. Best after-sale service is provided;
7. We are the stable and long term supplier of many top companies
in China.
