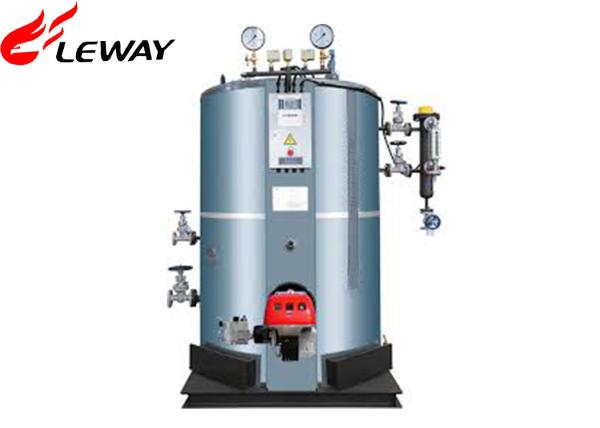

Steam Output 1000KG/H Vertical Firetube Steam Boiler for Industrial
Use
Product Description
| Product Name |
Vertical Steam Boiler
|
| Fuel Type |
Diesel, Heavy Oil, Crude Oil
|
| Thermal Efficiency |
92%
|
| Operation Control |
PLC Programmable Control
|
| After-sales Service Provided |
Engineers Available To Service Machinery Overseas
|
Standard Features
1. Durability
2. Good Quality. Each unit is tested and inspected and registered
with the National Board of Boiler and Pressure Vessel Inspectors.
3. High Efficiency. LHS vertical boilers is designed for optimum
fuel efficiency.
4. Low Maintenance
5. Easy Access
6. Compact Structure
Application areas
1, washing ironing industry: dry cleaning machine, dryer, washing
machine, dehydration machine, ironing machine, iron and other
equipment supporting the use of
2, bio-chemical industry: fermentation tank, reactor, sandwich pan,
mixer, emulsifier and other equipment supporting the use of
3, the packaging machinery industry: labeling machine, supporting
the use of standard machine
4, food machinery industry: tofu machine, steamer, sterilization
tank, packaging machine, paint equipment,
sealing machine and other equipment supporting the use of
5, other industries: (oil, automobile) steam cleaning industry,
(hotels, dormitories, schools) steam or hot water supply, (bridges,
railways)etc.
Steam Boiler Model
| Item Umit Model | Steam Boiler |
| LHS0.3- | LHS0.5- | LHS0.75- | LHS1- |
| 0.7-Y.Q | 0.7-Y.Q | 1.0-Y.Q | 0.7-Y.Q | 0.7-Y.Q |
| Nominal Capacity | Kg/h | 300 | 500 | 500 | 750 | 1000 |
| Nominal Steam Pressure | Mpa | 0.7 | 0.7 | 1 | 0.7 | 0.7 |
| Nominal Steam Temperature | ℃ | 170 | 170 | 184 | 170 | 170 |
| Feed Water Temperature | ℃ | 20 |
| Thermal Efficiency | % | >90 |
| Water Volume | L | 660 | 770 | 770 | 1160 | 1310 |
| Steam Outlet | DN | 40 | 40 | 50 |
| Inlet | DN | 25 | 32 | 25 | 40 |
| Sewage Valve | DN | 40 |
| Safety Valve | DN | 40 | 40/40 |
| Smoke Crossing | mm | 219 | 300 |
| Base Dimensions | mm | 1190*1190 | 1450*1450 | 1620*1620 |
| Dimensions | Length | mm | 1450 | 1500 | 1750 |
| Width | mm | 1450 | 1500 | 1750 |
| Height | mm | 2250 | 2120 | 2250 | 2470 |
| Transport Weight | T | 1.4 | 1.78 | 2 | 2.3 | 2.46 |
| Gas Pressure | Kpa | 1.5-3.5 | 4-8 |
| Gas Pipe | DN | 32 | 40 | 50 |
| Fuel Consumption | L.N.G | Nm³/h | 23.5 | 39.2 | 58.8 | 78.4 |
| L.P.G | Nm³/h | 9 | 15 | 22.5 | 30 |
| C.G | Nm³/h | 50 | 83.3 | 124.9 | 166.6 |
After-sales Service
1. Engineers available to service machinery overseas.
2. We can guarantee 3 years for the boiler host,and also warranty 2
years for auxiliary boiler.
3. If there is any problem in install and use process, fell free to
contact us and we will get back to you in first time to solve the
problem
4. If our reply is still no solution to boiler problems, we will
send engineers on-site service.
FAQ
Q: Can i customize the machines?
Yes, we have a professional R & D engineer team to design the
product according to the customers requirements.
Q: Do not you exported to?
We have sold to Saudi Arabia, Kuwait, Russia, Portugal, Australia,
Iceland, Canada, South Africa and so on.
Q: Are you trading company or manufacturer ?
A: We are factory.
