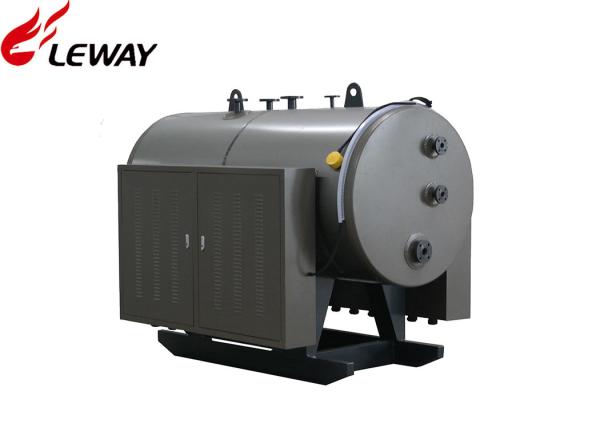

LEWAY 3 pass high quality 99% thermal efficiency industrial
electric steam boiler makes the electrical control cabinet separate
from boiler body to avoid affecting the boiler’s working life when
the electrical elements become aging. the electrical heated tube
can be used for about 20000 hours,its thermal efficiency could
almost be 99% and will not release NOX to the air, it is
environmental. the control system is PLC screen, and indicators,
Chinese and English display,etc
Why choose our products?
We are a professional boilers factory.
1. Economically priced,exquisitely made. Experienced & responsible
QC that you can rely on;
2. Strict quality control system. From the material, welding, to
finished boiler shipment, from project , establishment, drawing
design, to final
audit;
3. Scientific advanced rational and economical structure design;
4. Adequate supply capacity, punctual delivery time;
5. Each boiler system part is from first class brand all over the
world or China;
6. Best after-sale service is provided;
7. We are the stable and long term supplier of many top companies
in China.
Steam Boiler Model
| Item /Unit/Model | WDR0.5-1.0-D | WDR-1.0-1.0-D | WDR1.5-1.0-D | WDR-2.0-1.0-D | WDR3.0-1.0-D | WDR4.0-1.0-D |
| Rated Heat Capacity | Kg/h | 500 | 1000 | 1500 | 2000 | 3000 | 4000 |
| Working Pressure | Mpa | 1 | 1 | 1 | 1 | 1 | 1 |
| Rated Steam Temp | ℃ | 184 | 184 | 184 | 184 | 184 | 184 |
| Feedwater Temp | ℃ | 20 |
| Thermal Efficiency | % | 98 |
| Water Volume | L | 2000 | 2600 | 2850 | 3415 | 5850 | 8100 |
| Steam Outlet | DN | 40 | 50 | 65 | 80 | 80 | 100 |
| Water Inlet | DN | 25 | 25 | 40 | 40 | 40 | 40 |
| Drain Valve | DN | 40 | 40 | 40 | 40 | 40 | 40 |
| Relief Valve | DN | 40 | 40 | 2×40 | 2×40 | 2×50 | 2×50 |
| Heating-Tube | Kw/h | 24 | 60 | 60 | 60 | 60 | 60 |
| Heating-Tube Unit | Qty | 15 | 12 | 18 | 24 | 36 | 47 |
| Dimensions | Length | mm | 2720 | 2970 | 3200 | 3700 | 4180 | 4790 |
| Width | mm | 1760 | 1860 | 1860 | 1800 | 2100 | 2180 |
| Height | mm | 1730 | 1830 | 1830 | 1830 | 1980 | 2100 |
| Base Dimensions | mm | 2220×900 | 2350×1000 | 2700×1000 | 3200×1000 | 3800×1100 | 4200×1200 |
| Transport Weight | Kg | 1650 | 2001 | 2228 | 2525 | 2930 | 3460 |
Quality Assurance
1. Produce according to the national standard, all pressurized
components apply fine quality steel
2. Before delivery, every boiler must be subject to strict
inspection and testing, including hydraulic test and X-ray
inspection
3. Selecting the most suitable and famous brand automatic burner to
match the boiler so as to guarantee safety and reach rated output
4. Strength calculation test report of applied materials
5. Hydraulic test report: ensure the standard working pressure and
safety
6. Third-party inspection report-Jiaozuo Special Equipment
Inspection & Technical Research
Application
Medicine, chemical, light industry, textile, building material,
cultivation, food and beverage, plastic foam, printing, dyeing and
washing, rubber processing, paper products,wood processing, hotel,
clothing and leather manufacturer etc.
