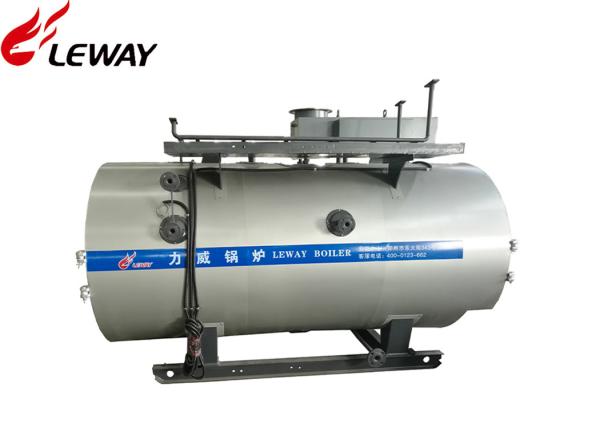

Horizontal 1.5 Ton Steam Heat Boiler , Fuel Oil Fired Boilers PLC Automatic Control

    Buy cheap Horizontal 1.5 Ton Steam Heat Boiler , Fuel Oil Fired Boilers PLC Automatic Control from wholesalers

    Buy cheap Horizontal 1.5 Ton Steam Heat Boiler , Fuel Oil Fired Boilers PLC Automatic Control from wholesalers
    • Buy cheap Horizontal 1.5 Ton Steam Heat Boiler , Fuel Oil Fired Boilers PLC Automatic Control from wholesalers

    Horizontal 1.5 Ton Steam Heat Boiler , Fuel Oil Fired Boilers PLC Automatic Control

    Ask Lasest Price
    Brand Name : LEWAY BOILER
    Model Number : WNS
    Certification : SGS, ISO, OHSAS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 3000 Ton/Tons per Year
    Delivery Time : Within 20 working days
    • Product Details
    • Company Profile

    Horizontal 1.5 Ton Steam Heat Boiler , Fuel Oil Fired Boilers PLC Automatic Control

    1.5 Ton Oil Fired Steam Boiler Fire Tube Steam Boiler Warranty 2 Years


    Product features

    1. Quality Burner: Oil fired steam boiler adopting high quality low nitrogen split-type burner; preheat the air for burner, raise the furnace's temperature and increase combustion efficiency.

    2. Long life: Adopt advanced technology of preheat expansion then welded which prevents corrode tube clearance and enhanced strength.also through hot commissioning before delivery, whether running or operation rate are all very stable.

    3. PLC automatic Control: WNS series oil fired steam boiler adopting advanced touch screen control cabinet and digital computer full automatic controller. The water feeding system controller can automatically regulate water feeding rate, make sure boiler's water stay on the standard water level. According to boiler's working pressure, burner controller can automatically regulate output power; the burner's output has one- two- three stages fire.


    Steam Boiler Model


    Item Unit ModelWNS 0.5-1.0 -Y(Q)WNS 1-1.0 -Y(Q)WNS 1-1.25 -Y(Q)WNS 1.5-1.0 -Y(Q)WNS 2-1.0 -Y(Q)
    Rated Capacityt0.5111.52
    Steam PressureMPa111.2511
    Steam Temperature183.2183.2194183.2183.2
    Heating Surface25.135.236.453.5573.1
    Thermal Efficiency%95%-99%
    Oil ConsumptionKg/h316769101.6132.6
    Power ConsumptionKW3.25567
    Boiler Weightt3.54.85.35.96.8
    Water Volume1.82.82.83.63.9
    External DimensionLmm29543000330034003800
    Wmm13941760176020502000
    Hmm1752210021502250

    2200


    FAQ


    Q1: Are you trading company or manufacturer ?

    A: We are factory.

    Q2: When the product can be delivered?

    A: Commonly the lead time will be within 15days after receiving 30% deposit or L/C, subject to prior sales.

    Q3: What's the advantage of your company?

    A: We have exported our boilers and service to more than 50 countries./ we have specialize team work for you, you will get our feedback within 12 hours./ Germany and Italian advanced manufacturing technology.


    Important Reminder

    Before the shipment, our company assembly the boiler to make whole-set pilot run. We will shoot a long video of each detailed processes; it will help the user to do the installation easier.
