Three Return 2T High Efficiency Gas Steam Boiler Fire Tube Structure

Ask Lasest Price
Brand Name :	LEWAY BOILER
Model Number :	WNS
Certification :	SGS, ISO, OHSAS
Price :	Negotiable
Supply Ability :	3000 Ton/Tons per Year
Delivery Time :	Within 20 working days

Add to Cart

Product Details
Company Profile

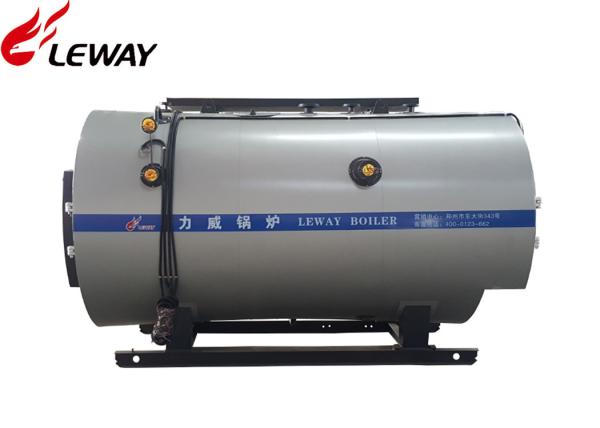

Three Return 2T High Efficiency Gas Steam Boiler Fire Tube Structure

2T Three Return High Efficiency Gas Steam Boiler With 1.25MPa Work Pressure

Product Features

1. Convenient Installation/ Maintenance
WNS series gas fired steam boiler gets compact structure and openable front/ back smoke boxes, man-hole, hand-hole, platform ladder. Above designs are convenient for installation, maintenance.
2. PLC automatic Control:
WNS series gas fired steam boiler adopting advanced touch screen control cabinet and digital computer full automatic controller. The water feeding system controller can automatically regulate water feeding rate, make sure boiler's water stay on the standard water level. According to boiler's working pressure, burner controller can automatically regulate output power; the burner's output has one- two- three stages fire.

Steam Boiler Model

Item Unit Model			WNS 2-1.25 -Y(Q)	WNS 3-1.25 -Y(Q)	WNS 4-1.25 -Y(Q)	WNS 6-1.25 -Y(Q)
Rated Capacity		t	2	3	4	6
Feedwater Temp		℃	20
Steam Pressure		MPa	1.25
Steam Temperature		℃	194
Heating Surface		㎡	68	106.7	141.5	185.8
Thermal Efficiency		%	95%-99%
Gas Consumption		Nm³/h	144	216	288	432
Power Consumption		KW	7	15	15	20
Basement	L	mm	3100	3360	3560	4100
Basement	W	mm	1200	1450	1500	1750
Transport Size	L	mm	4002	4260	4794	5372
	W	mm	1900	2130	2180	2198
	H	mm	2177	2425	2502	2635

Usage

Gas fired steam boiler be widely used in Medicine, chemical, light industry, textile, building material, cultivation, food and beverage, plastic foam, printing, dyeing and washing, rubber processing, paper products,wood processing, hotel, clothing and leather manufacturer etc.

After-sales Service

1. Engineers available to service machinery overseas.
2. We can guarantee 3 years for the boiler host,and also warranty 2 years for auxiliary boiler.
3. If there is any problem in install and use process, fell free to contact use and we will get back to you in first time to solve the problem.
4. If our reply is still no solution to boiler problems, we will send engineers on-site service.
