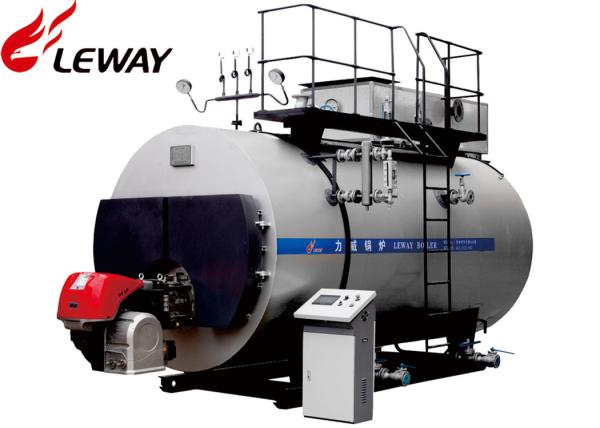

Fire Tube High Efficiency Gas Steam Boiler 0.5T - 20T

Ask Lasest Price
Brand Name :	LEWAY BOILER
Model Number :	WNS
Certification :	SGS, ISO, OHSAS
Price :	Negotiable
Supply Ability :	3000 Ton/Tons per Year
Delivery Time :	Within 20 working days

Add to Cart

Product Details
Company Profile

Fire Tube High Efficiency Gas Steam Boiler 0.5T - 20T

Fire Tube 0.5t - 20t High Efficiency Gas Steam Boiler With Complate Spare Parts

Product Description

Product Name	High Efficiency Gas Steam Boiler
Fuel Type	Natural Gas
Thermal Efficiency	95%
Operation Control	PLC Programmable Control
After-sales Service Provided	Engineers Available To Service Machinery Overseas

Energy Efficient

Three fire-passes, corrugated fire-tubes/ corrugated furnace effectively increase boiler’s heating surface. Wet-Back replace traditional Dry-Back, protect the smoke-boxes from high-temperature damage. Finned tube-type condenser to reuse the latent heat in exhaust gas.

Quality Assurance

1. Strength calculation test report of applied materials
2. Whole set of pure water processor line featured with RO anti-saturation and advanced testing devices
3. Hydraulic test report: ensure the standard working pressure and safety
4. Third-party inspection report-Jiaozuo Special Equipment Inspection & Technical Research

Steam Boiler Model

Item Unit Model			WNS 0.5-1.0 -Y(Q)	WNS 1- 1.0 -Y(Q)	WNS 1- 1.25 -Y(Q)	WNS 1.5- 1.0 -Y(Q)	WNS 2- 1.0 -Y(Q)	WNS 2- 1.25 -Y(Q)	WNS 3- 1.25 -Y(Q)	WNS 4- 1.25 -Y(Q)	WNS 6- 1.25 -Y(Q)	WNS 8- 1.25 -Y(Q)	WNS 10- 1.25 -Y(Q)	WNS 15- 1.25 -Y(Q)	WNS 20- 1.25 -Y(Q)
Rated Capacity		t	0.5	1	1	1.5	2	2	3	4	6	8	10	15	20
Feedwater Temp		℃	20
Steam Pressure		MPa	1.0	1.0	1.25	1.0	1.0	1.25
Steam Temperature		℃	183.2	183.2	194	183.2	183.2	194
Heating Surface		㎡	25.1	35.2	36.4	53.55	73.1	68	106.7	141.5	185.8	261.8	351.1	513.9	616.7
Thermal Efficiency		%	95%-99%
Fuel Consumption	Diesel	Kg/h	31	67	69	101.6	132.6	133.7	198	280.1	386.1	550	681	1020.8	1372.2
Fuel Consumption	Gas	Nm³/h	38.2	72	72	108	144	144	216	288	432	572	718	1076	1410
Power Consumption		KW	3.2	5	5	6	7	7	15	15	20	26	40	55	65
Boiler Weight		t	3.5	4.8	5.3	5.9	6.8	7.2	9.1	12.3	16.2	19.6	27.4	38	47
Water Volume		m³	1.8	2.8	2.8	3.6	3.9	3.9	6.3	8.5	9	13.3	13.6	23.5	32.3
External Dimension	L	mm	2954	3000	3300	3400	3800	3800	4300	4580	5300	6254	6373	7415	7830
	W	mm	1394	1760	1760	2050	2000	2000	2050	2280	2380	2528	2640	3360	3500
	H	mm	1752	2100	2150	2250	2200	2350	2550	2550	2645	3015	3124	3510	3998
Live Steam Pipe		mm	50	50	50	65	80	80	80	100	125	150	150	200	250
Water Inlet Pipe		mm	25	25	25	40	40	40	40	40	50	50	50	50	65
Relief Valve Pipe		mm	40	40	40	40	40	40	50	50	65	80	80	100	100
Drain Pipe		mm	40	40	40	40	40	40	40	40	40	40	40	50	50
Chimney		mm	300	300	300	300	350	350	400	400	600	700	800	900	1000
Basement	L	mm	2240	2835	2835	2900	3100	3100	3360	3560	4100	5200	5380	6180	6800
Basement	W	mm	950	1100	1100	1200	1200	1200	1450	1500	1750	2000	2100	2300	2650
Transport Size	L	mm	2954	3254	3254	3442	3886	4002	4260	4794	5372	6646	6882	7407	8166
	W	mm	1556	1770	1770	1900	1900	1900	2130	2180	2198	2600	2600	3193	3400
	H	mm	1727	2072	2072	2159	2172	2177	2425	2502	2635	3043	3246	3553	4027

Complate Boiler Room System

Packing & Delivery

PE films covering the main body of gas fired steam boiler; All auxiliaries packed with PE films & steel boxes.
