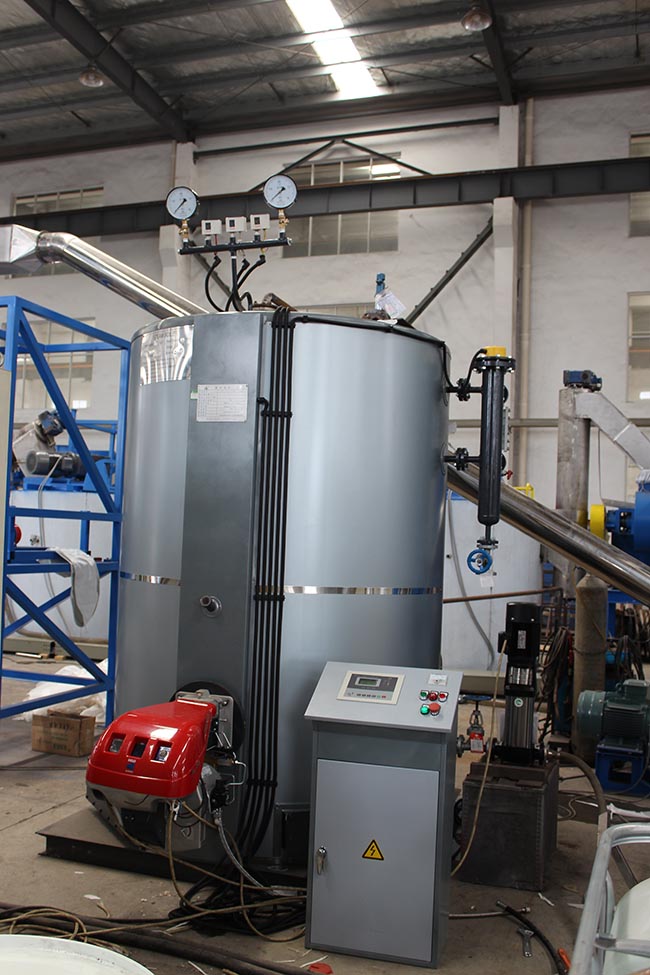

Vertical Style Natural Gas Steam Boiler with High Quality Warranty
Two Years
Product Description
| Product Name |
Natural Gas Steam Boiler
|
| Fuel Type |
Natural Gas,City Gas,Coal Gas
|
| Thermal Efficiency |
92%
|
| Operation Control |
PLC Programmable Control
|
| After-sales Service Provided |
Engineers Available To Service Machinery Overseas
|
Our Services
Warranty:
Two-year warranty with full life service.
Boiler spare parts service:
A full range of original spare parts are available for all LEWAY
boilers
Service before sale:
Provide relative technical data for customer choosing
equipments,layout drawing,foundation,general grawing.
Service after sale:
Help customer for installation and training. Engineer abroad
service is available.
Maintenance and repair for one year.
High Efficient
The boiler body has the advantages of optimized design,large heated
area,high thermal efficiency,quick temperature rising,and
sufficient hot water supply.High-quality burner
configuration;Therefore,the fuels are sufficiently burnt and the
noise is low.
Steam Boiler Model
| Item/Umit/Model | Steam Boiler |
| LHS0.3- | LHS0.5- | LHS0.75- | LHS1- |
| 0.7-Y.Q | 0.7-Y.Q | 1.0-Y.Q | 0.7-Y.Q | 0.7-Y.Q |
| Nominal Capacity | Kg/h | 300 | 500 | 500 | 750 | 1000 |
| Nominal Steam Pressure | Mpa | 0.7 | 0.7 | 1 | 0.7 | 0.7 |
| Nominal Steam Temperature | ℃ | 170 | 170 | 184 | 170 | 170 |
| Feed Water Temperature | ℃ | 20 |
| Thermal Efficiency | % | >90 |
| Water Volume | L | 660 | 770 | 770 | 1160 | 1310 |
| Steam Outlet | DN | 40 | 40 | 50 |
| Inlet | DN | 25 | 32 | 25 | 40 |
| Sewage Valve | DN | 40 |
| Safety Valve | DN | 40 | 40/40 |
| Smoke Crossing | mm | 219 | 300 |
| Base Dimensions | mm | 1190*1190 | 1450*1450 | 1620*1620 |
| Dimensions | Length | mm | 1450 | 1500 | 1750 |
| Width | mm | 1450 | 1500 | 1750 |
| Height | mm | 2250 | 2120 | 2250 | 2470 |
| Transport Weight | T | 1.4 | 1.78 | 2 | 2.3 | 2.46 |
| Gas Pressure | Kpa | 1.5-3.5 | 4-8 |
| Gas Pipe | DN | 32 | 40 | 50 |
| Fuel Consumption |
| L.N.G | Nm³/h | 23.5 | 39.2 | 58.8 | 78.4 |
| L.P.G | Nm³/h | 9 | 15 | 22.5 | 30 |
| C.G | Nm³/h | 50 | 83.3 | 124.9 | 166.6 |
Application areas
1, washing ironing industry: dry cleaning machine, dryer, washing
machine, dehydration machine, ironing machine, iron and other
equipment supporting the use of
2, bio-chemical industry: fermentation tank, reactor, sandwich pan,
mixer, emulsifier and other equipment supporting the use of
3, the packaging machinery industry: labeling machine, supporting
the use of standard machine
4, food machinery industry: tofu machine, steamer, sterilization
tank, packaging machine, paint equipment, sealing machine and other
equipment supporting the use of
5, other industries: (oil, automobile) steam cleaning industry,
(hotels, dormitories, schools) steam or hot water supply, (bridges,
railways)etc.
